CXCL5 toehold switch sensor
(Plasmid
#111907)
-
PurposeToehold switch sensor to detect CXCL5 mRNA with GFP output
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 111907 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |

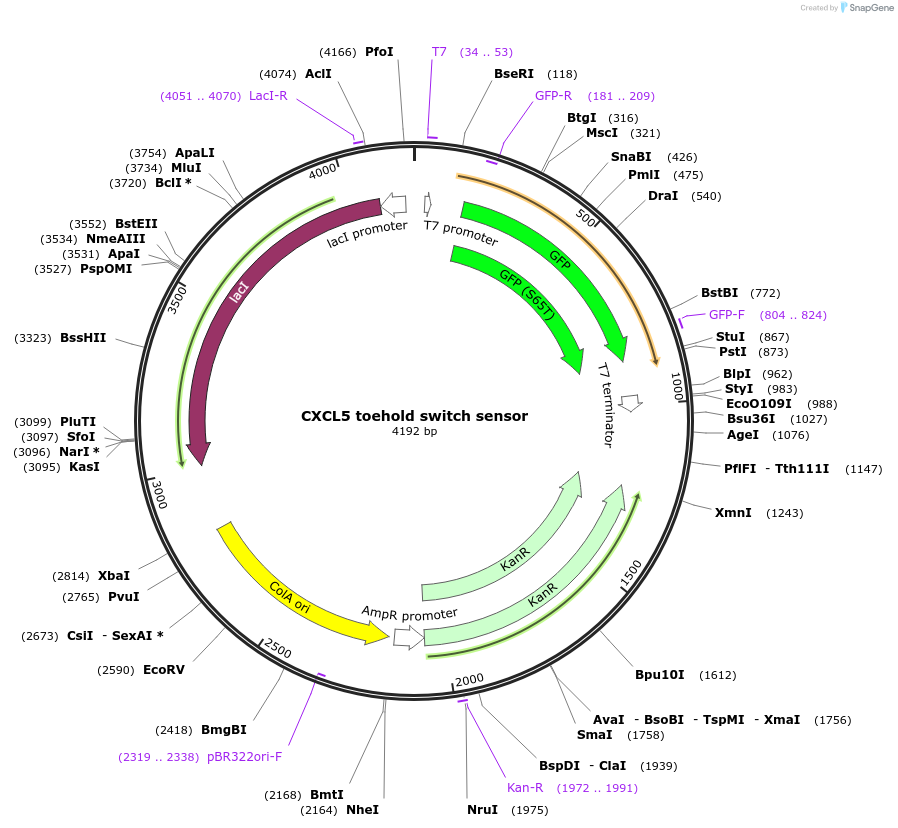

Backbone
-
Vector backbonepCOLA
-
Vector typeSynthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameCXCL5 toehold switch sensor
- Promoter T7
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer ttcaccaccctgaattgactc (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
CXCL5 toehold switch sensor was a gift from James Collins (Addgene plasmid # 111907 ; http://n2t.net/addgene:111907 ; RRID:Addgene_111907) -
For your References section:
A low-cost paper-based synthetic biology platform for analyzing gut microbiota and host biomarkers. Takahashi MK, Tan X, Dy AJ, Braff D, Akana RT, Furuta Y, Donghia N, Ananthakrishnan A, Collins JJ. Nat Commun. 2018 Aug 21;9(1):3347. doi: 10.1038/s41467-018-05864-4. 10.1038/s41467-018-05864-4 PubMed 30131493
