pONSY-Venus
(Plasmid
#111875)
-
PurposeThis plasmid expresses Venus fluorescent protein under endogenous EF1a promoter. It can be used to transfect "Capsaspora owczarzaki" cells and visualize them by fluorescence microscopy.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 111875 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepONSY
- Backbone size w/o insert (bp) 5127
-
Modifications to backboneCapsaspora expression vector (backbone) modified from the pCR2.1 vector. It bears the promoter and terminator regions from the endogenous Elongation Factor 1 alpha (EF1a) gene (CAOG_07807) cloned using Restriction Enzymes and Gibson Assembly strategies.
-
Vector typeCapsaspora owczarzaki
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin and Kanamycin, 100 & 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameVenus
-
Insert Size (bp)720
- Promoter Elongation Factor 1 alpha (EF1a) from Capsaspora
-
Tag
/ Fusion Protein
- Venus (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site KpnI (unknown if destroyed)
- 3′ cloning site none (unknown if destroyed)
- 5′ sequencing primer CTGGTACCAAATGCACAGTTAGCAACGACC
- 3′ sequencing primer CATTGCTAGTGCTGTTCTCACC (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pONSY-Venus was a gift from Inaki Ruiz-Trillo (Addgene plasmid # 111875 ; http://n2t.net/addgene:111875 ; RRID:Addgene_111875) -
For your References section:
Transfection of Capsaspora owczarzaki, a close unicellular relative of animals. Parra-Acero H, Ros-Rocher N, Perez-Posada A, Kozyczkowska A, Sanchez-Pons N, Nakata A, Suga H, Najle SR, Ruiz-Trillo I. Development. 2018 May 11. pii: dev.162107. doi: 10.1242/dev.162107. 10.1242/dev.162107 PubMed 29752387

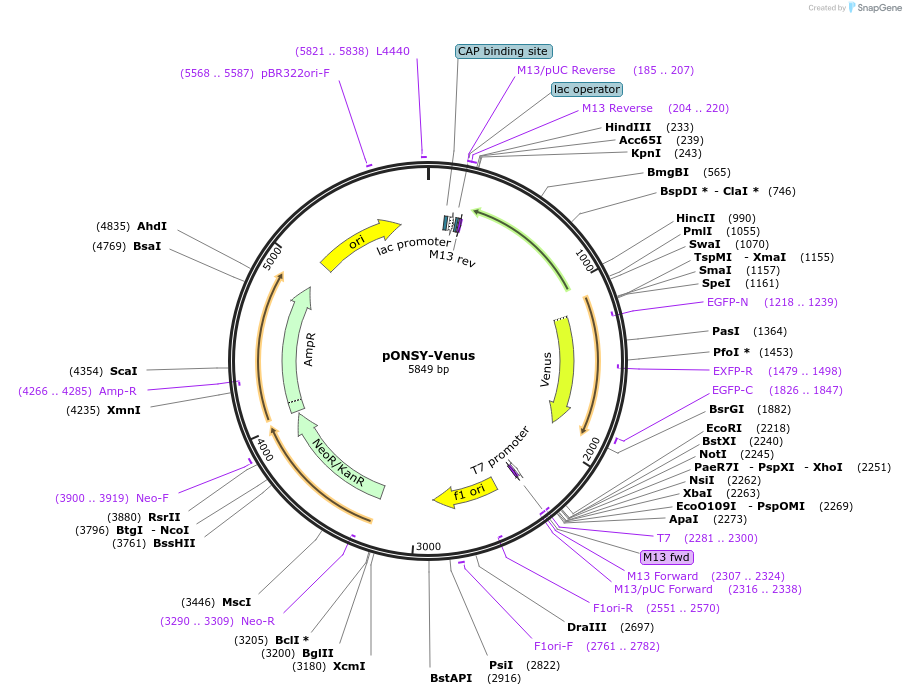

Map uploaded by the depositor.
