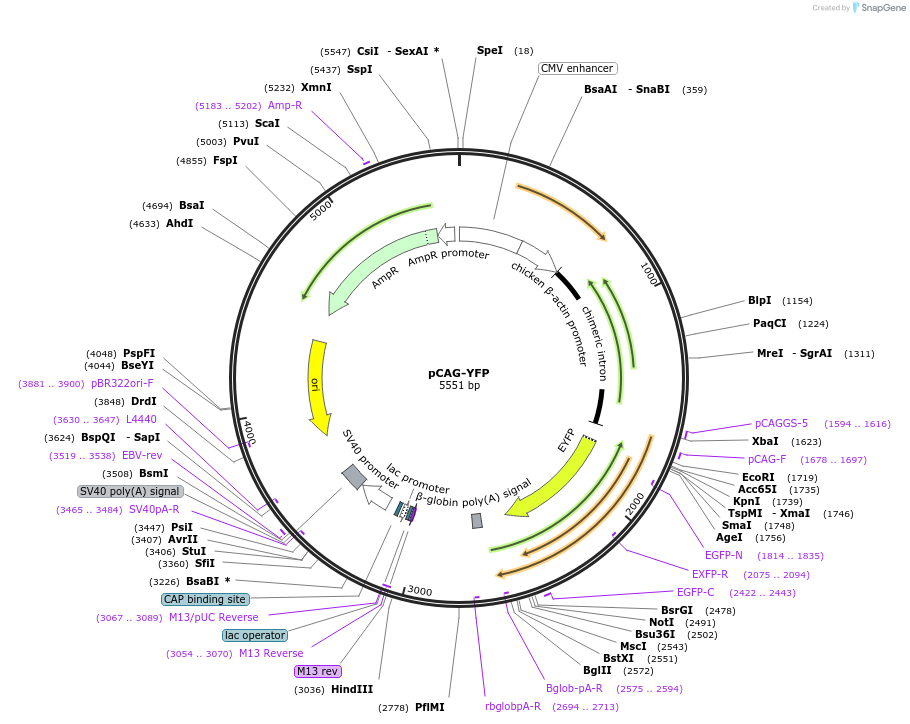

pCAG-YFP
(Plasmid #11180)

• Purpose: Mammalian expression vector for expression of YFP
• Depositing Lab: Connie Cepko
• Publication: Matsuda et al Proc Natl Acad Sci U S A. 2004 Jan 6. 101(1):16-22.

Backbone

• Vector backbone: pCAGEN
• Backbone manufacturer: Available at Addgene (#11160)
• Backbone size w/o insert (bp): 4779
• Vector type: Mammalian Expression

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: EYFP from Aequorea victoria
• Alt name: YFP
• Alt name: yellow fluorescent protein
• Insert Size (bp): 772

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: EcoRI (not destroyed)
• 3′ cloning site: NotI (not destroyed)
• 5′ sequencing primer: pCAG-F
• 3′ sequencing primer: EGFP-N

Resource Information

• A portion of this plasmid was derived from a plasmid made by: EYFP was from pEYFP-N1 (Clontech).
• Articles Citing this Plasmid:
  • 11 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
