PTE_26
(Plasmid #111639)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 111639 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

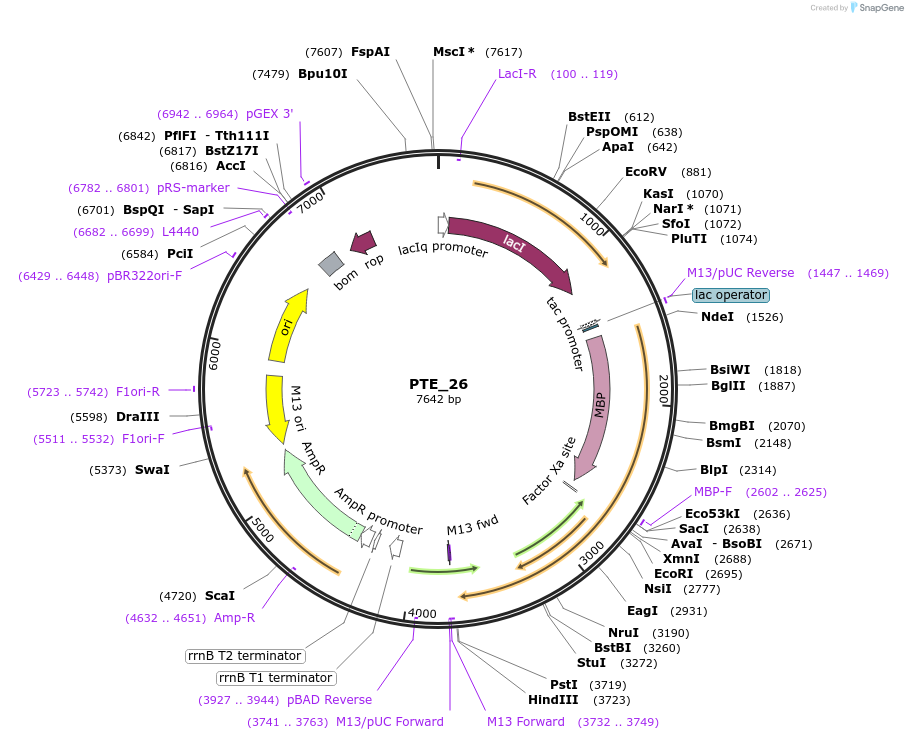

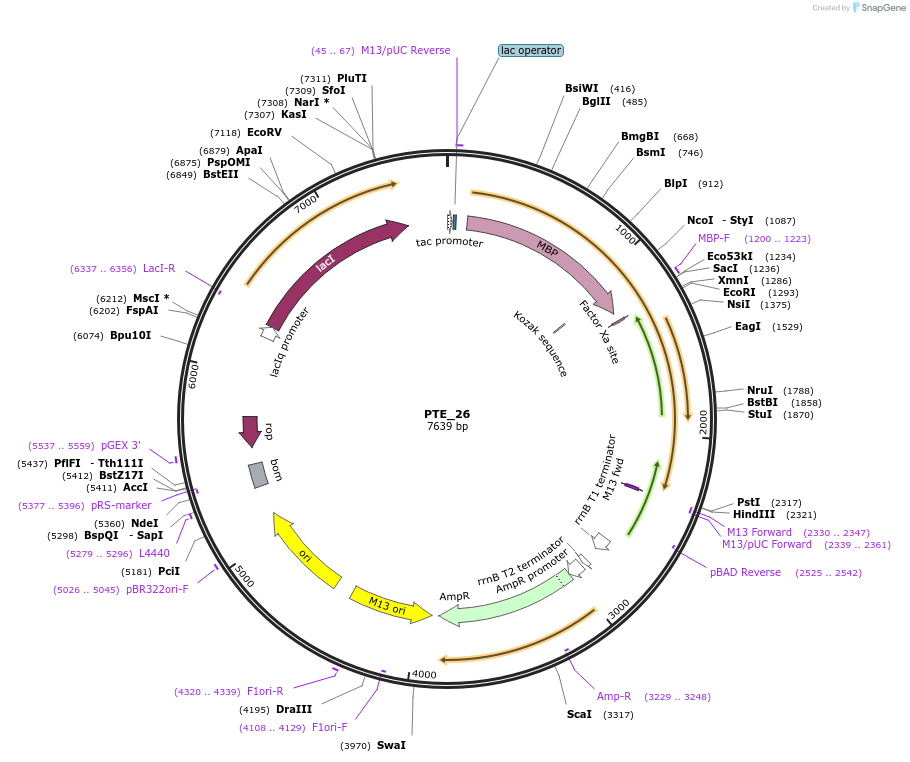

Backbone

  • Vector backbone
    pMal C2
  • Backbone manufacturer
    NEB
  • Backbone size w/o insert (bp) 6634
  • Total vector size (bp) 1008
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    PTE_26
  • Alt name
    Funclib design PTE_26
  • Species
    Synthetic
  • Insert Size (bp)
    1008
  • Promoter pTac
  • Tag / Fusion Protein
    • MBP (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site PstI (not destroyed)
  • 5′ sequencing primer GACGCGCAGACTAATTCGAGCTC
  • 3′ sequencing primer CAGGGTTTTCCCAGTCACGACGTTGTAA
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    PTE_26 was a gift from Sarel Fleishman (Addgene plasmid # 111639 ; http://n2t.net/addgene:111639 ; RRID:Addgene_111639)

  • For your References section:

    Automated Design of Efficient and Functionally Diverse Enzyme Repertoires. Khersonsky O, Lipsh R, Avizemer Z, Ashani Y, Goldsmith M, Leader H, Dym O, Rogotner S, Trudeau DL, Prilusky J, Amengual-Rigo P, Guallar V, Tawfik DS, Fleishman SJ. Mol Cell. 2018 Oct 4;72(1):178-186.e5. doi: 10.1016/j.molcel.2018.08.033. Epub 2018 Sep 27. 10.1016/j.molcel.2018.08.033 PubMed 30270109
