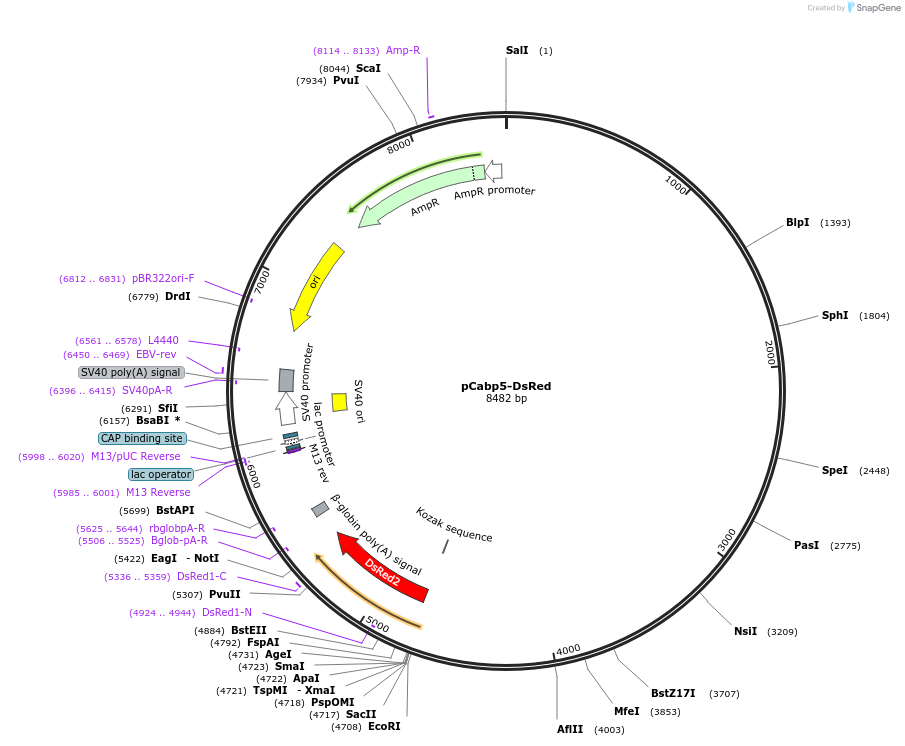

pCabp5-DsRed
(Plasmid #11157)

• Depositing Lab: Connie Cepko
• Publication: Matsuda et al Proc Natl Acad Sci U S A. 2004 Jan 6. 101(1):16-22.

Backbone

• Vector backbone: pCAGEN
• Backbone size w/o insert (bp): 3084
• Vector type: Mammalian Expression

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: Cabp5 promoter
• Alt name: Calcium binding protein 5 promoter
• Alt name: Cabp5
• Species: M. musculus (mouse)
• Insert Size (bp): 4679
• Entrez Gene: Cabp5
• Tag / Fusion Protein:
  • DsRed2 (C terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: SpeI (not destroyed)
• 3′ cloning site: NotI (not destroyed)
• 5′ sequencing primer: n/a
• 3′ sequencing primer: DsRed-R

Resource Information

• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

The Cabp5 promoter is specific for bipolar cells in the retina
