pUB-GFP
(Plasmid #11155)

• Purpose: Mammalian expression vector for expression of GFP (Ubiquitin C promoter)
• Depositing Lab: Connie Cepko
• Publication: Matsuda et al Proc Natl Acad Sci U S A. 2004 Jan 6. 101(1):16-22.

Backbone

• Vector backbone: pCAGEN
• Backbone size w/o insert (bp): 3084
• Vector type: Mammalian Expression

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: Ubiquitin C promoter
• Alt name: UBC
• Alt name: UBC promoter
• Species: H. sapiens (human)
• Insert Size (bp): 1211
• Entrez Gene: UBC (a.k.a. HMG20)
• Tag / Fusion Protein:
  • EGFP (C terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: SpeI (not destroyed)
• 3′ cloning site: NotI (not destroyed)
• 5′ sequencing primer: na
• 3′ sequencing primer: EGFP-N

Resource Information

• Addgene Notes:

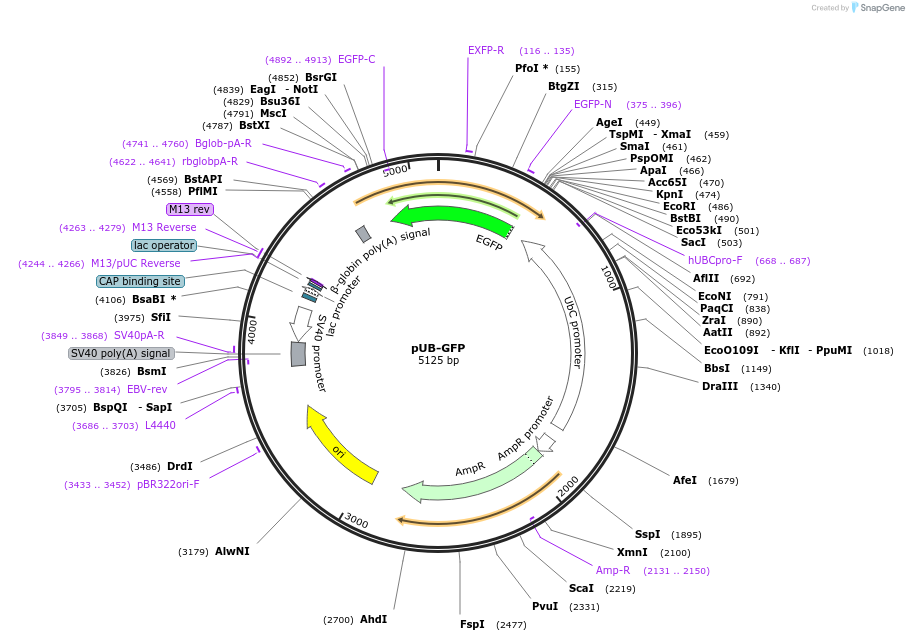

  • Plasmid Sequence
• A portion of this plasmid was derived from a plasmid made by: Human Ubiquitin C promoter (Schorpp et al., Nucleic Acids Res. 24, 1787-1788 (1996)) was obtained from Dr. C. Lois (MIT).
• Articles Citing this Plasmid:
  • 16 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Information for Cloning Grade DNA (Catalog # 11155-DNA.cg) ( Back to top)

Purpose

Cloning grade DNA is suitable for use in PCR, cloning reactions, or transformation into E. coli. The purity and amount is not suitable for direct transfections.

Delivery

• Amount: 2 µg
• Guaranteed Concentration: 100 ng/µl +/- 5 ng/µl
• Pricing: $105 USD
• Storage: DNA can be stored at 4℃ (short term) or -20℃ (long term).

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Addgene has verified this plasmid using Next Generation Sequencing. Results are available here
