pSW002-Pc-TorA(sp)-mTurquoise2
(Plasmid
#111254)
-
PurposeBroad host-range bacterial expression vector with constitutive Pc promoter followed by E. coli TorA signal peptide in frame with mTurquoise2 (codon optimized for P. fluorescens); export to periplasm
-
Depositing Lab
-

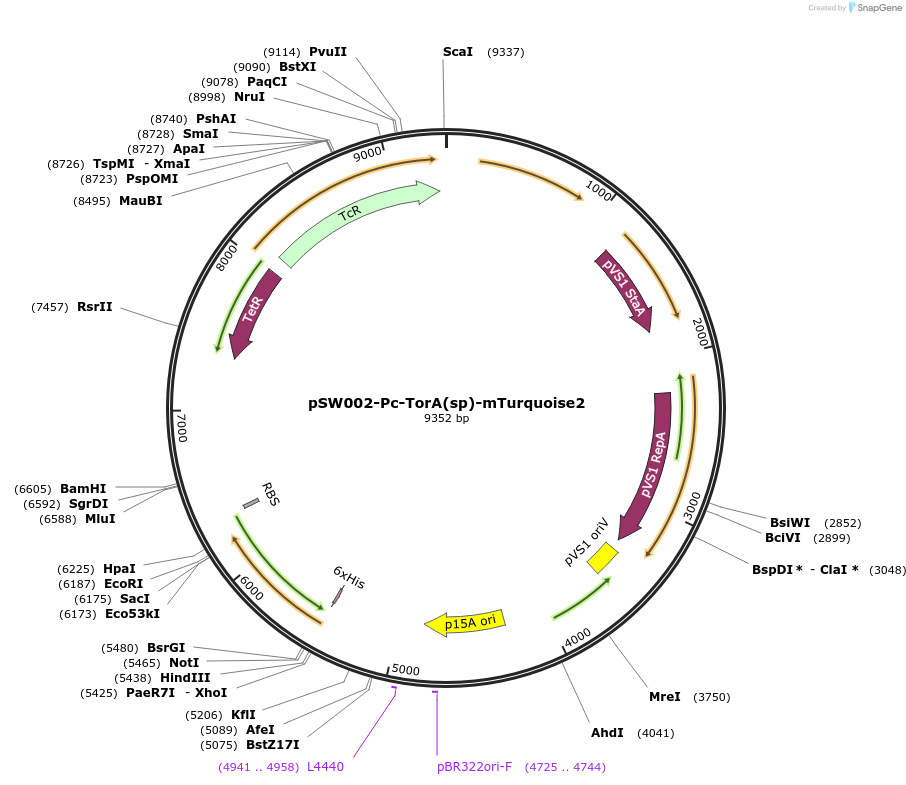

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 111254 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepME6031
-
Backbone manufacturerDieter Haas; obtained from Culture Collection of Switzerland
- Total vector size (bp) 9352
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Tetracycline, 10 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameTorA(sp)-mTurquoise2
-
SpeciesSynthetic
-
MutationmTurquoise2 is codon optimized for expression in P. fluorescens
- Promoter Pc
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NA (unknown if destroyed)
- 3′ cloning site NA (unknown if destroyed)
- 5′ sequencing primer NA (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pSW002-Pc-TorA(sp)-mTurquoise2 was a gift from Rosemarie Wilton (Addgene plasmid # 111254 ; http://n2t.net/addgene:111254 ; RRID:Addgene_111254) -
For your References section:
A New Suite of Plasmid Vectors for Fluorescence-Based Imaging of Root Colonizing Pseudomonads. Wilton R, Ahrendt AJ, Shinde S, Sholto-Douglas DJ, Johnson JL, Brennan MB, Kemner KM. Front Plant Sci. 2018 Feb 1;8:2242. doi: 10.3389/fpls.2017.02242. eCollection 2017. 10.3389/fpls.2017.02242 PubMed 29449848
