pSW002-Pc-mRuby2
(Plasmid #111250)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 111250 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

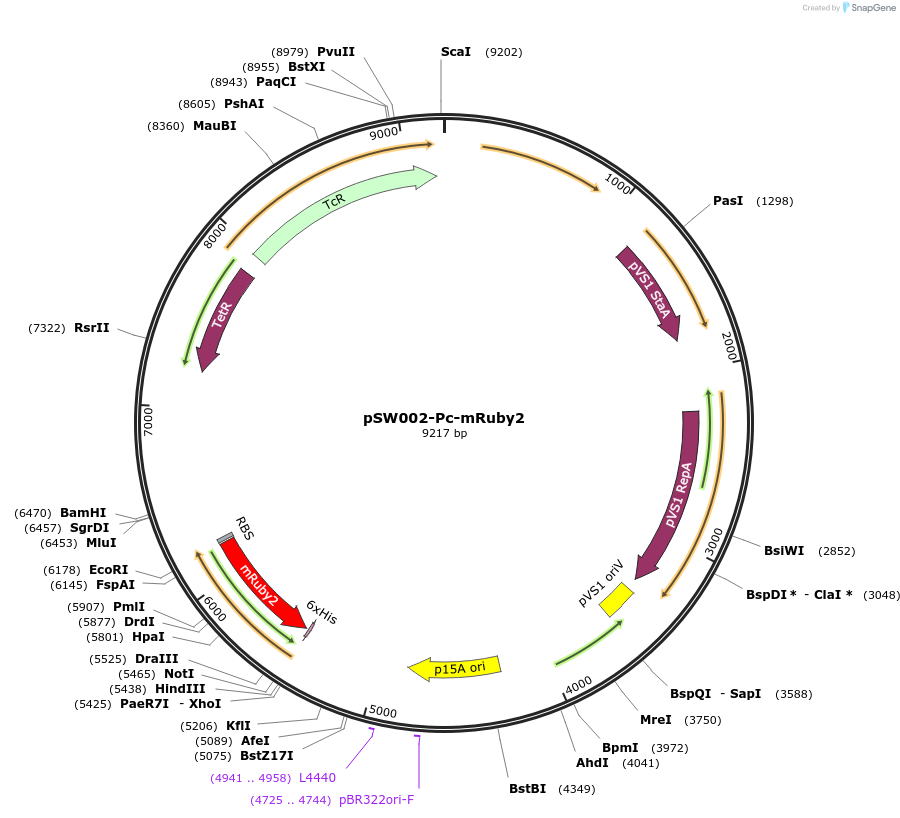

Backbone

  • Vector backbone
    pME6031
  • Backbone manufacturer
    Dieter Haas; obtained from Culture Collection of Switzerland
  • Total vector size (bp) 9217
  • Modifications to backbone
    Several restriction sites were removed to facilitate cloning
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Tetracycline, 10 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    mRuby2
  • Species
    Synthetic
  • Mutation
    mRuby2 is codon optimized for expression in P. fluorescens
  • Promoter Pc

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NA (unknown if destroyed)
  • 3′ cloning site NA (unknown if destroyed)
  • 5′ sequencing primer NA
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSW002-Pc-mRuby2 was a gift from Rosemarie Wilton (Addgene plasmid # 111250 ; http://n2t.net/addgene:111250 ; RRID:Addgene_111250)

  • For your References section:

    A New Suite of Plasmid Vectors for Fluorescence-Based Imaging of Root Colonizing Pseudomonads. Wilton R, Ahrendt AJ, Shinde S, Sholto-Douglas DJ, Johnson JL, Brennan MB, Kemner KM. Front Plant Sci. 2018 Feb 1;8:2242. doi: 10.3389/fpls.2017.02242. eCollection 2017. 10.3389/fpls.2017.02242 PubMed 29449848
