PurposemiR-E (miR-30 variant)-based RNAi with GFP reporter
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 111160 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

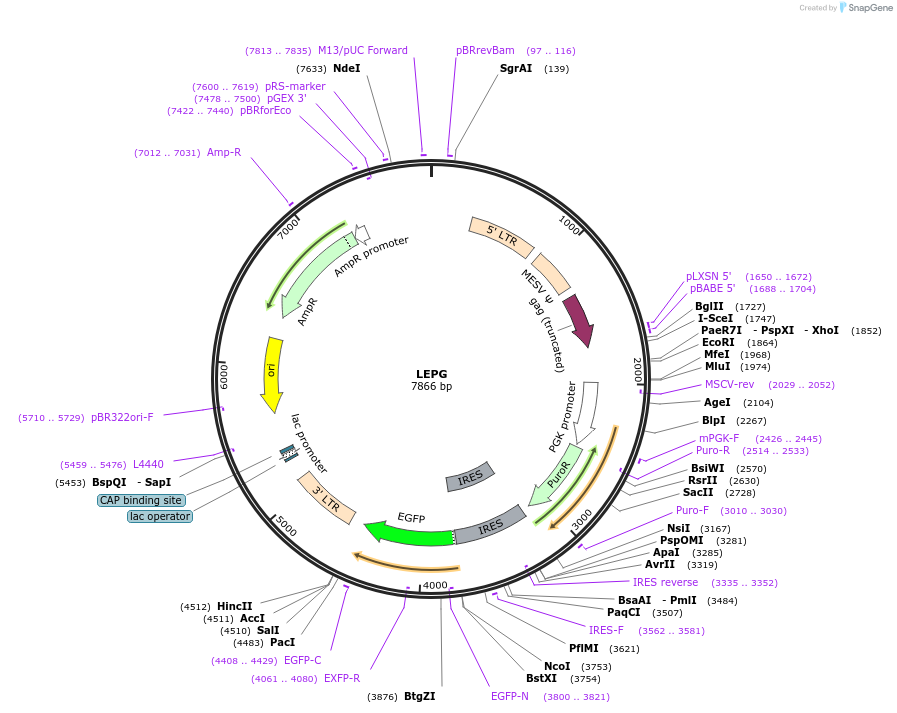

Backbone
-
Vector backbonepMSCV
-
Vector typeRetroviral
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemiR-E (miR-30 variant)
-
Alt namemiR-E-PGK-Puro-IRES-GFP
-
gRNA/shRNA sequenceempty
-
SpeciesH. sapiens (human)
-
MutationWT
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site Unknown (unknown if destroyed)
- 3′ cloning site Unknown (unknown if destroyed)
Resource Information
-
Supplemental Documents
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
LEPG was a gift from Johannes Zuber (Addgene plasmid # 111160 ; http://n2t.net/addgene:111160 ; RRID:Addgene_111160) -
For your References section:
An optimized microRNA backbone for effective single-copy RNAi. Fellmann C, Hoffmann T, Sridhar V, Hopfgartner B, Muhar M, Roth M, Lai DY, Barbosa IA, Kwon JS, Guan Y, Sinha N, Zuber J. Cell Rep. 2013 Dec 26;5(6):1704-13. doi: 10.1016/j.celrep.2013.11.020. Epub 2013 Dec 12. 10.1016/j.celrep.2013.11.020 PubMed 24332856
