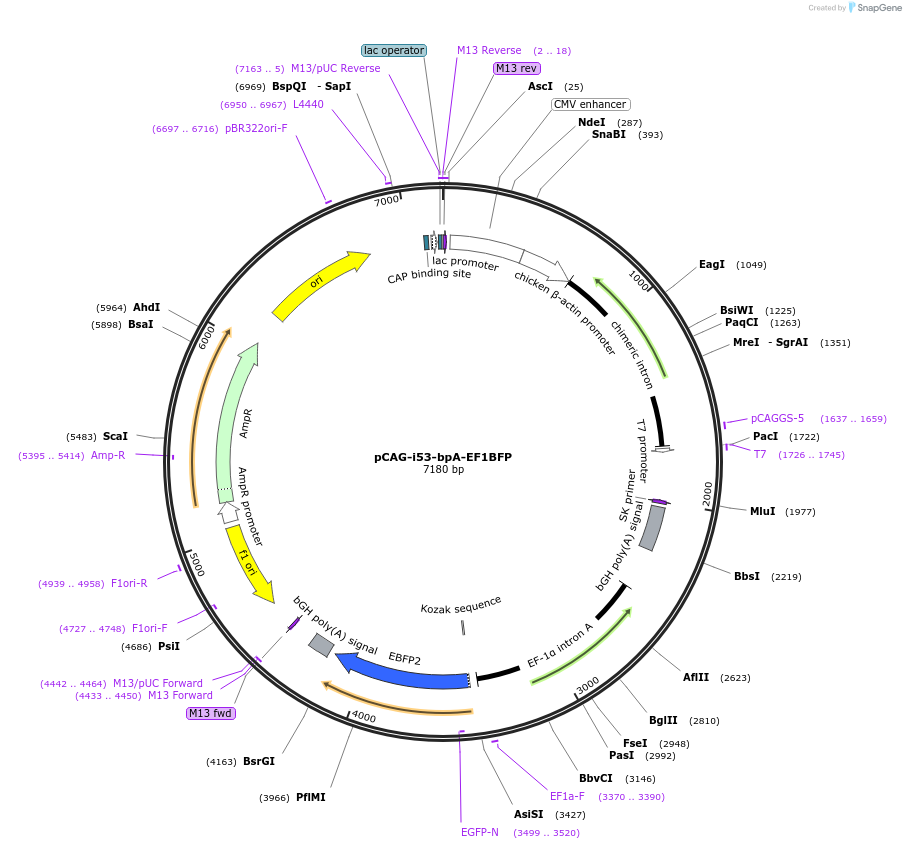

pCAG-i53-bpA-EF1BFP
(Plasmid #111145)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 111145 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    Bluescript
  • Total vector size (bp) 7175
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    i53
  • Species
    Synthetic
  • Insert Size (bp)
    225
  • Mutation
    human Ubiquitin, contains 8 point mutations
  • GenBank ID
    AAA72608.1
  • Entrez Gene
    mutL (a.k.a. HLAC_RS03120, Hlac_0629)
  • Promoter CAG promoter

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site PacI (not destroyed)
  • 3′ cloning site MluI (not destroyed)
  • 5′ sequencing primer M13 reverse
  • 3′ sequencing primer M13 forward
  • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    BFP
  • Species
    Synthetic
  • Insert Size (bp)
    720
  • Entrez Gene
    BFP
  • Promoter EF1

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site AsiSI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer M13 reverse
  • 3′ sequencing primer M13 forward
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Amplified from Addgene plasmid 74939 deposited by Daniel Durocher
  • Article Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Amplified from Addgene plasmid 74939 deposited by Daniel Durocher.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCAG-i53-bpA-EF1BFP was a gift from Ralf Kuehn (Addgene plasmid # 111145 ; http://n2t.net/addgene:111145 ; RRID:Addgene_111145)
  • For your References section:

    Efficient Gene Editing of Human Induced Pluripotent Stem Cells Using CRISPR/Cas9. Yumlu S, Bashir S, Stumm J, Kuhn R. Methods Mol Biol. 2019;1961:137-151. doi: 10.1007/978-1-4939-9170-9_10. 10.1007/978-1-4939-9170-9_10 PubMed 30912045
