KG#244
(Plasmid #110927)

• Purpose: Vector for expressing proteins in a subset of 9 DA/ DB cholingergic motor neurons in the C. elegans ventral nerve cord
• Depositing Lab: Kenneth Miller
• Publication: Edwards et al J Cell Biol. 2009 Sep 21;186(6):881-95. doi: 10.1083/jcb.200902095.

Backbone

• Vector backbone: pUC
• Backbone size w/o insert (bp): 2632
• Total vector size (bp): 6360
• Vector type: Bacterial Expression

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert 1

• Gene/Insert name: unc-129 promoter
• Species: C. elegans (nematode)
• Insert Size (bp): 2642

Cloning Information for Gene/Insert 1

• Cloning method: Unknown
• 5′ sequencing primer: Unknown

Gene/Insert 2

• Gene/Insert name: unc-54 3' control region
• Species: C. elegans (nematode)
• Insert Size (bp): 940

Cloning Information for Gene/Insert 2

• Cloning method: Unknown
• 5′ sequencing primer: Unknown

Resource Information

• Supplemental Documents:

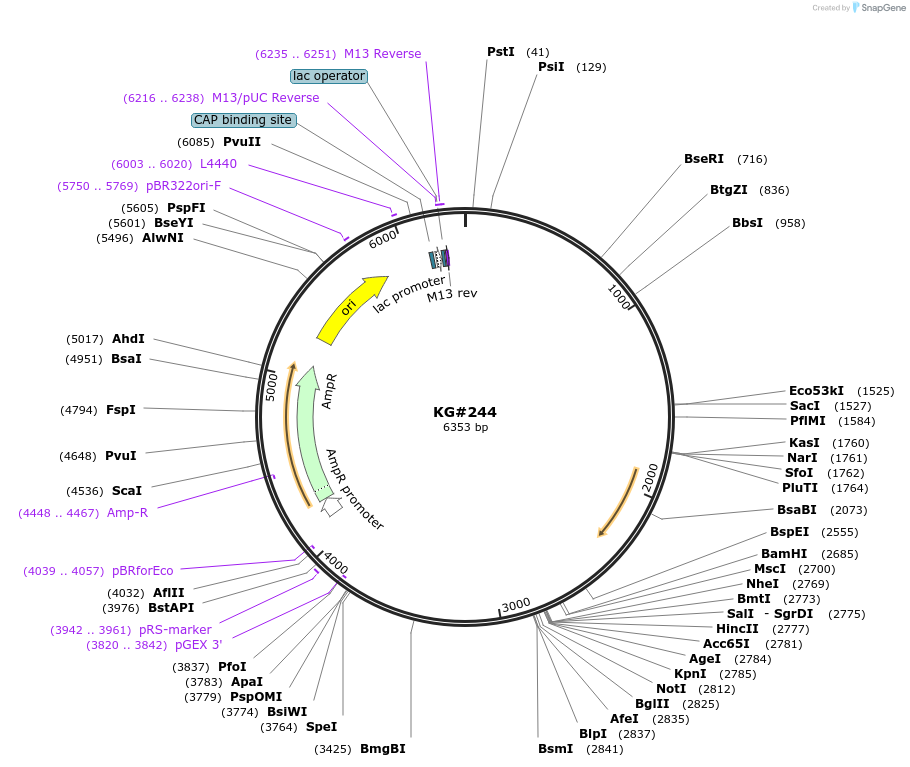

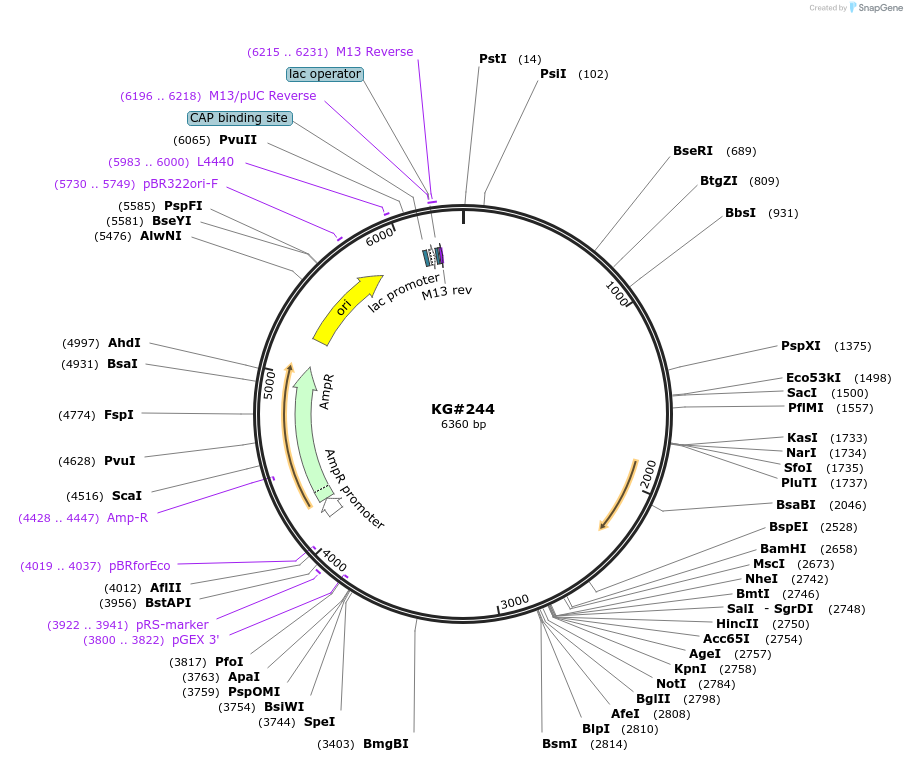

  • Annotated ApE and Strider formatted file--download free ApE plasmid editor to view

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Unique multi-cloning sites: Nhe I/ Sal I/ Kpn I/ Age I/ Not I/ Bgl II

We used Pst I/ Bam H I to cut out the ~1200 bp rab-3 promoter from KG#208, leaving the 3700 bp vector fragment. To this vector fragment, we ligated the 2600 bp Pst I/ Bam H I unc-129 promoter fragment cut from KG#230. Picked 4 colonies for minipreps. Chose 1 clone with correct size insert and made glycerol stock.

Features of the expression construct: This is the same as KG#230 except it has a Not I site between the Xho I and Bgl II sites in the MC.

Features of the expression construct: This expression construct has a promoter (unc-129::) that will drive strong and specific expression (of whatever gene is inserted in the MCS) in 9 of the DA/ DB cholinergic neurons of the ventral nerve cord. unc-129 promoter sequence includes the region from the native Sma I site (2.6 Kb upstream of the start codon) down to the 7th nucleotide before the A of the ATG. This includes a 19 bp 5' UTR (out of 25 bp 5' UTR total). This promoter is a shortened version of the unc-129 promoter. This shortened version drives expression in 9 ventral cord motor neurons that Sieburth et al identified as the DA's. The promoter itself is described in Colavita et al., 1998, although they claim expression in both DA's and DB's. The DA motor neurons form NMJ's in the dorsal nerve cord and receive synaptic inputs in the ventral cord (therefore proteins localized to the ventral cord would be dendritically localized/ postsynaptic). Other features of the expression vector include a "decoy" 5' to the promoter to reduce non-specific expression in the gut (see Fire Lab 1995 Kit documentation for description), the unc-54 3' end including the poly A addition signal, and 3 introns (1 in 5' UTR, 1 just upstream of the unc-54 3' end, and 1 inserted in the unc-54 3' end). These introns help provide more uniform and robust expression, especially if you are expressing a cDNA with no introns as opposed to a gene with introns.

Note: this vector can be converted to a vector that fuses GFP, YFP, or CFP onto the C-terminus of the protein as follows:

Remove the ~1000 bp (Kpn I or Age I) + (Spe I or BsiW I [expensive, 55 C cutter with 50% activity at 37 C; heat inactivate 80 C] or Apa I) fragment containing the unc-54 3’ control region from this plasmid and replace it with the ~1800 bp like-digested fragment containing 3-intron S65C GFP (see pPD94.81 in Fire Lab plasmids), YFP (see pPD136.64 in Fire Lab plasmids) or CFP (see pPD136.61 in Fire Lab plasmids) + the unc-54 3’ UTR and control region. Note if Spe I is used to cut these Fire Lab vectors, you get 3 bands: 1100, 1800, and 4000 (total size 6.9 Kb). The 1800 bp band is the XFP-containing band.

For C-terminal fusions, remember to leave the stop codon off of the upstream protein. For the above-mentioned Fire Lab vectors, the reading frame for the downstream XFP relative to the Kpn I and Age I sites is as follows (triplets are the reading frame codons):

Kpn I
G GTA CCG GT
Age I

Alternatively, use Gibson Assembly/ NEBuilder to insert any genetically encoded fluorescent protein at the N- or C-terminus of your protein.
