KG#45
(Plasmid #110926)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 110926 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pUC
  • Backbone size w/o insert (bp) 2632
  • Total vector size (bp) 4123
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    hsp-16-2 promoter
  • Species
    C. elegans (nematode)
  • Insert Size (bp)
    425

Cloning Information for Gene/Insert 1

Gene/Insert 2

  • Gene/Insert name
    unc-54 3' control region
  • Species
    C. elegans (nematode)
  • Insert Size (bp)
    940

Cloning Information for Gene/Insert 2

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

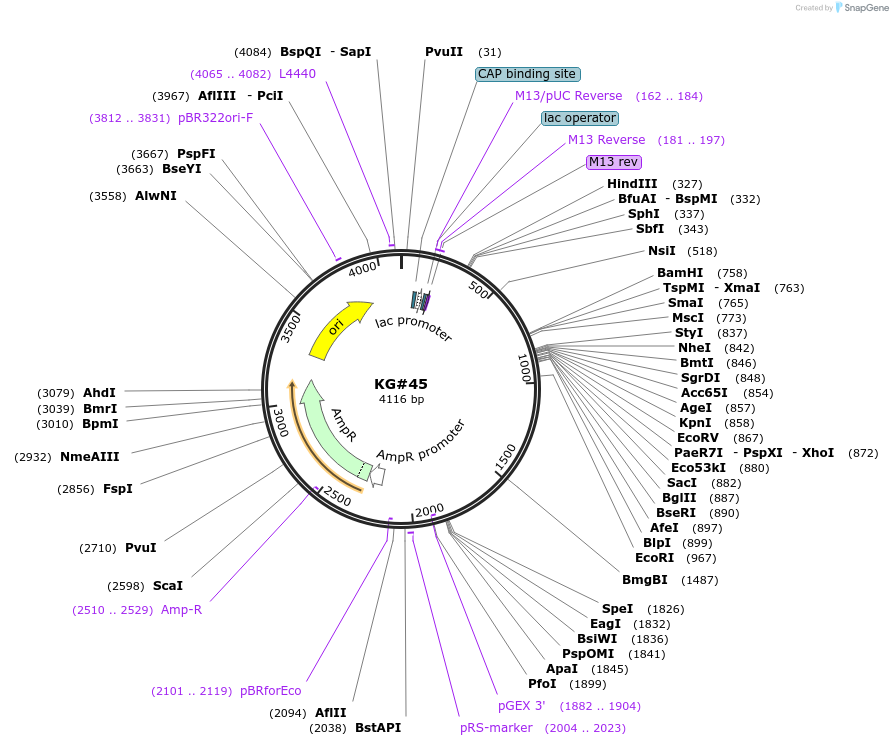

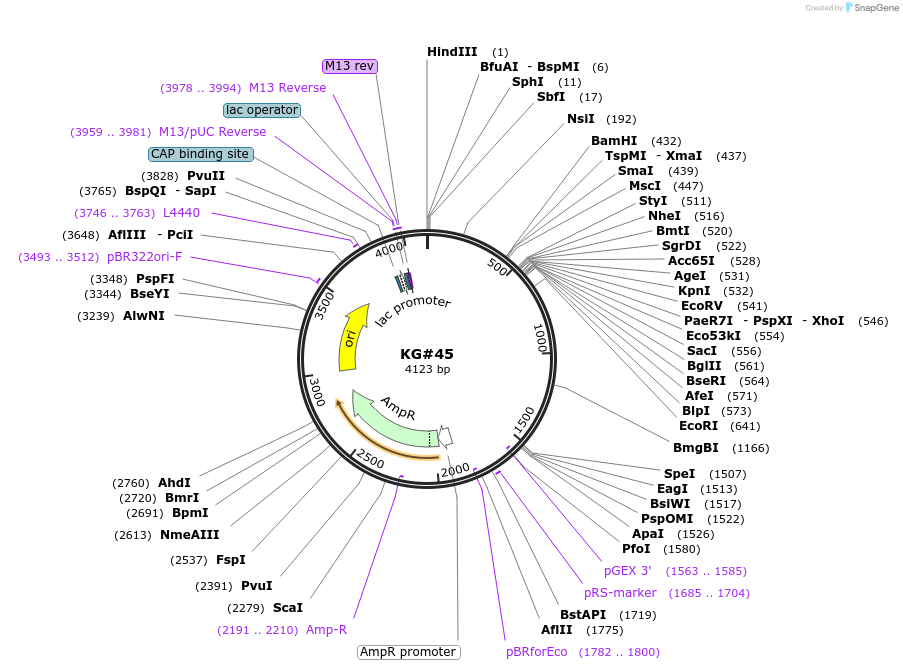

Unique sites in multi-cloning site: Nhe I/ Kpn I/ Age I/ Eco RV/ Xho I/ Sac I/ Bgl II

We used Hind III/ Bam HI to cut out the 2410 bp myo-3 promoter from pPD96.52 (Fire Lab plasmid), leaving the 3684 bp vector fragment. To this vector fragment, we ligated the ~430 bp hsp16-2 promoter Hind III/ Bam HI fragment cut from pPD49.78 (Fire Lab plasmid).

Note: this vector can be converted to a vector that fuses GFP, YFP, or CFP onto the C-terminus of the protein as follows:

Remove the ~1000 bp (Kpn I or Age I) + (Spe I or BsiW I [expensive, 55 C cutter with 50% activity at 37 C; heat inactivate 80 C] or Apa I) fragment containing the unc-54 3’ control region from this plasmid and replace it with the ~1800 bp like-digested fragment containing 3-intron S65C GFP (see pPD94.81 in Fire Lab plasmids), YFP (see pPD136.64 in Fire Lab plasmids) or CFP (see pPD136.61 in Fire Lab plasmids) + the unc-54 3’ UTR and control region. Note if Spe I is used to cut these Fire Lab vectors, you get 3 bands: 1100, 1800, and 4000 (total size 6.9 Kb). The 1800 bp band is the XFP-containing band.

For C-terminal fusions, remember to leave the stop codon off of the upstream protein. For the above-mentioned Fire Lab vectors, the reading frame for the downstream XFP relative to the Kpn I and Age I sites is as follows (triplets are the reading frame codons):

Kpn I
G GTA CCG GT
Age I

Alternatively, use Gibson Assembly/ NEBuilder to insert any genetically encoded fluorescent protein at the N- or C-terminus of your protein.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    KG#45 was a gift from Kenneth Miller (Addgene plasmid # 110926 ; http://n2t.net/addgene:110926 ; RRID:Addgene_110926)
  • For your References section:

    Convergent, RIC-8-dependent Galpha signaling pathways in the Caenorhabditis elegans synaptic signaling network. Reynolds NK, Schade MA, Miller KG. Genetics. 2005 Feb;169(2):651-70. doi: 10.1534/genetics.104.031286. Epub 2004 Oct 16. 10.1534/genetics.104.031286 PubMed 15489511
