MSP1594_2x_NLS
(Plasmid #110625)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 110625 Standard format: Plasmid sent in bacteria as agar stab 1 $85

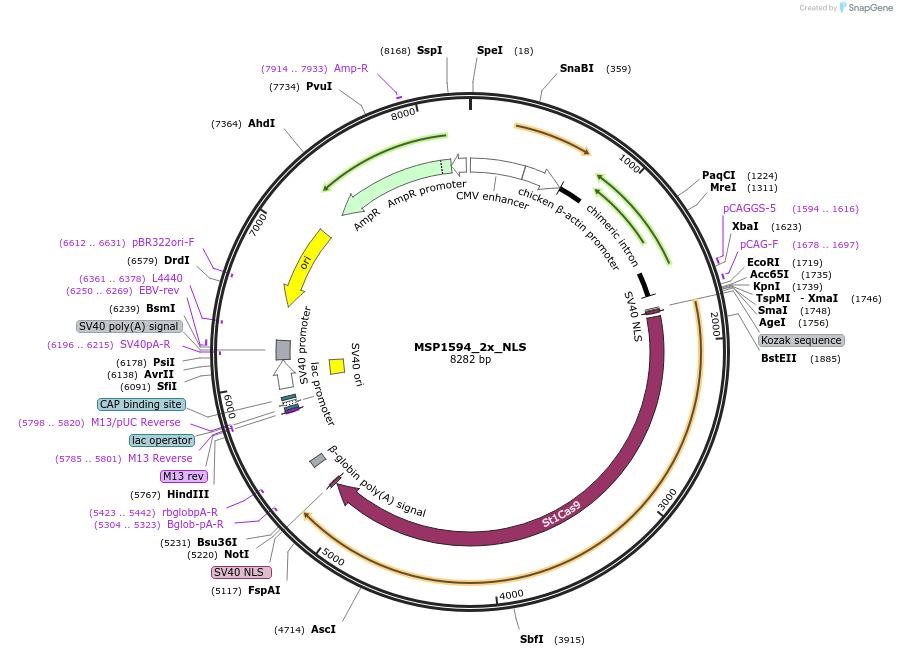

Backbone

  • Vector backbone
    MSP1594 (Plasmid #65775)
  • Total vector size (bp) 8282
  • Vector type
    Mammalian Expression, CRISPR, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    St1Cas9 LMD-9
  • Species
    H. sapiens (human), Synthetic
  • Promoter CAG
  • Tags / Fusion Proteins
    • SV40 NLS (N terminal on insert)
    • SV40 NLS (C terminal on insert)

Cloning Information for Gene/Insert 1

Gene/Insert 2

  • Gene/Insert name
    None
  • Species
    Synthetic

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

This plasmid is identical to MSP1594 (Plasmid #65775) except for the addition of an SV40 NLS to the N-terminus of mammalian codon-optimized Streptococcus thermophilus CRISPR1-Cas9 LMD-9. Please visit https://www.biorxiv.org/content/early/2018/05/14/321208 for BioRxiv preprint

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    MSP1594_2x_NLS was a gift from Yannick Doyon (Addgene plasmid # 110625 ; http://n2t.net/addgene:110625 ; RRID:Addgene_110625)
  • For your References section:

    Versatile and robust genome editing with Streptococcus thermophilus CRISPR1-Cas9. Agudelo D, Carter S, Velimirovic M, Duringer A, Rivest JF, Levesque S, Loehr J, Mouchiroud M, Cyr D, Waters PJ, Laplante M, Moineau S, Goulet A, Doyon Y. Genome Res. 2020 Jan;30(1):107-117. doi: 10.1101/gr.255414.119. Epub 2020 Jan 3. 10.1101/gr.255414.119 PubMed 31900288
