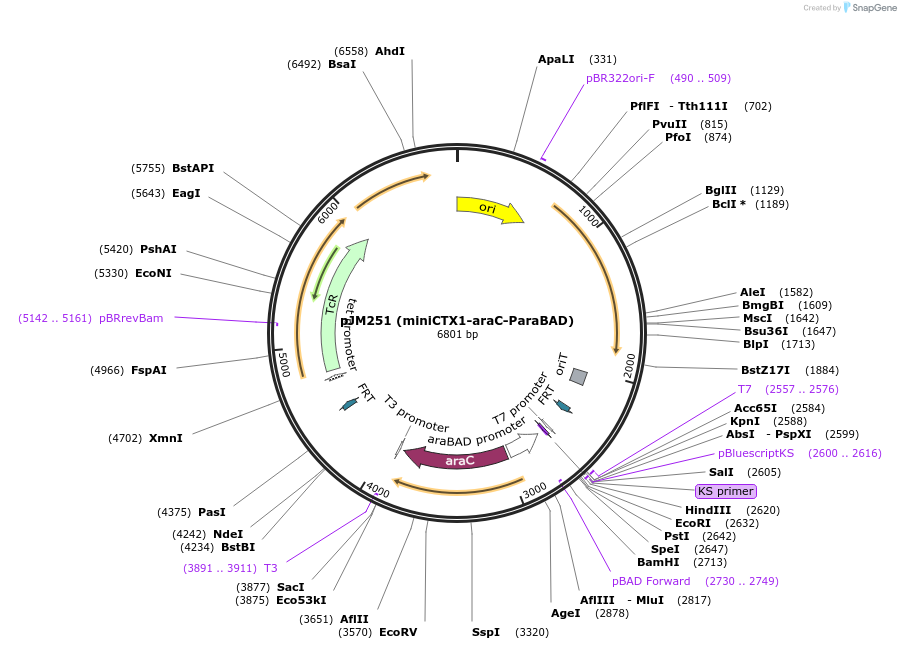

pJM251 (miniCTX1-araC-ParaBAD)
(Plasmid
#110567)
-
PurposeIntegration vector for Pseudomonas aeruginosa with araC-ParaBAD inducible promoter
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 110567 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneminiCTX1
-
Backbone manufacturerHerbert Schweizer
- Backbone size w/o insert (bp) 5610
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Tetracycline, 10 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namearaC-ParaBAD
-
GenBank IDKX787912
- Promoter araC-ParaBAD
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site SacI (not destroyed)
- 3′ cloning site HindIII (not destroyed)
- 5′ sequencing primer pBAD Forward (ATGCCATAGCATTTTTATCC) (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJM251 (miniCTX1-araC-ParaBAD) was a gift from Joanna Goldberg (Addgene plasmid # 110567 ; http://n2t.net/addgene:110567 ; RRID:Addgene_110567) -
For your References section:
The Escherichia coli rhaSR-PrhaBAD Inducible Promoter System Allows Tightly Controlled Gene Expression over a Wide Range in Pseudomonas aeruginosa. Meisner J, Goldberg JB. Appl Environ Microbiol. 2016 Oct 27;82(22):6715-6727. doi: 10.1128/AEM.02041-16. Print 2016 Nov 15. 10.1128/AEM.02041-16 PubMed 27613678
