pX330.orup
(Plasmid
#110404)
-
Purpose(Empty Backbone) CRISPR/Cas9 vector with sgRNA expression and puromycin resistance
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 110404 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-

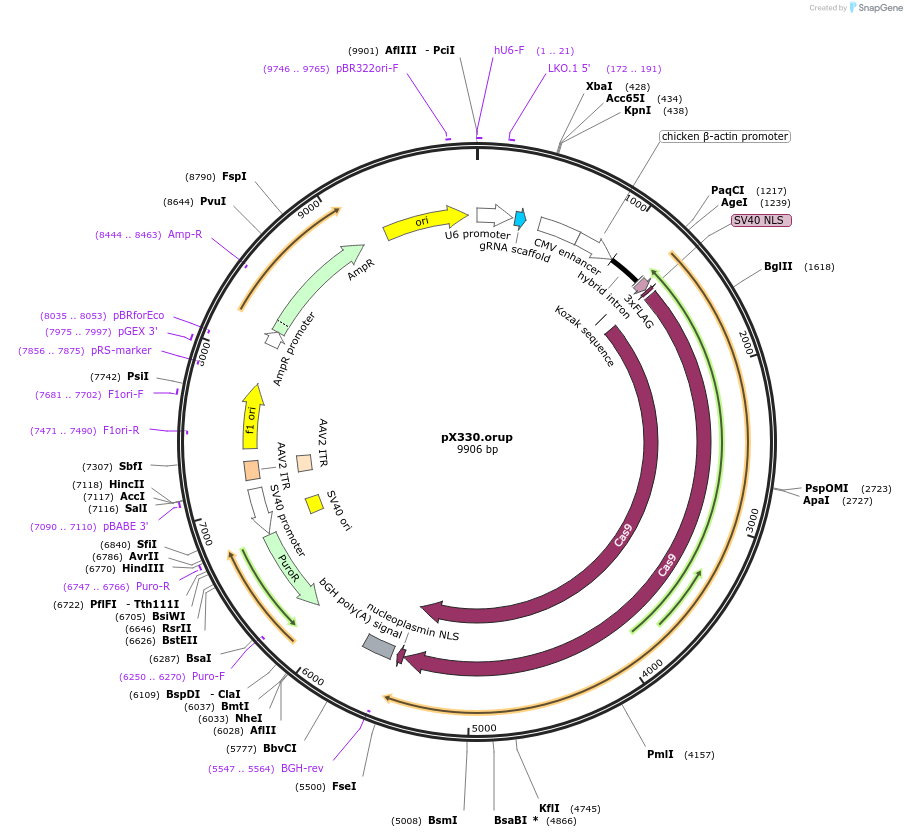

Vector backbonepX330-U6-Chimeric_BB-CBh-hSpCas9
-
Backbone manufacturer#42230
- Backbone size (bp) 8506
-
Modifications to backboneNotI site cleaved and filled, SV40-Puro cassete from pBABE.puro (Addgene #1764 from Dr. Hartmut Land, Dr. Jay Morgenstern, Dr. Bob Weinberg) with BamHI (overhang removed) and XbaI (overhang filled).
-
Vector typeMammalian Expression, CRISPR
- Promoter CBh
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- 5′ sequencing primer agggatggttggttggtggg
- 3′ sequencing primer CCAATCCTCCCCCTTGCTGT (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
pX330 with puromycin resistance
For plasmid usage, please see the associated publication (Cong et al. Science. 2013, PMID: 23287718), as well as Ran et al. Nat Protoc. 2013, PMID: 24157548.
For more information on Zhang Lab CRISPR Plasmids please refer to: http://www.addgene.org/crispr/zhang/
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pX330.orup was a gift from Sandra Martha Gomes Dias (Addgene plasmid # 110404 ; http://n2t.net/addgene:110404 ; RRID:Addgene_110404)
