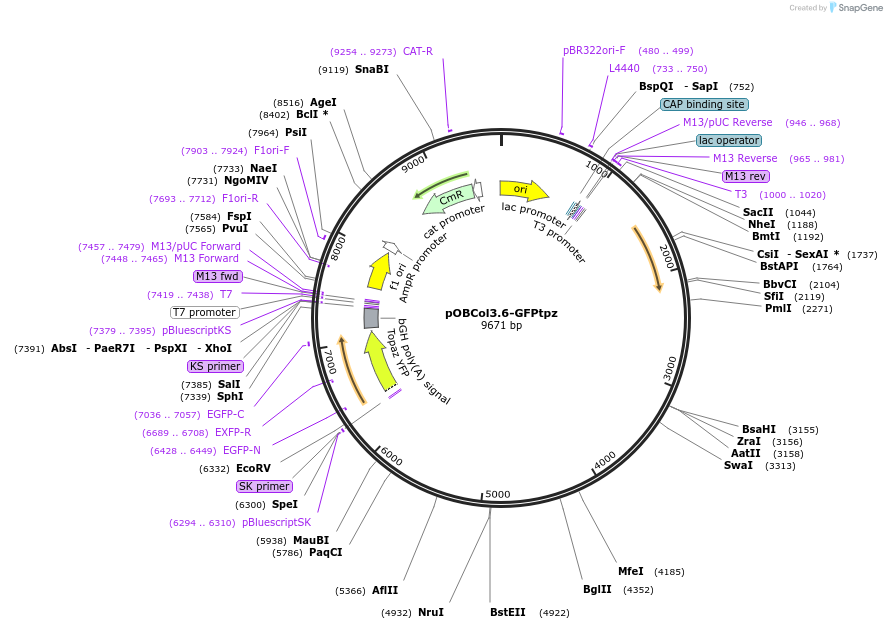

pOBCol3.6-GFPtpz
(Plasmid
#110211)
-
PurposeLabels immature osteoblasts and connective tissue cells expressing type 1 collagen.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 110211 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepBC SK+
-
Backbone manufacturerStratagene
- Backbone size w/o insert (bp) 3400
- Total vector size (bp) 9600
-
Modifications to backboneNone
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameeGFPtopaz
-
Alt nameTopaz
-
Alt nameYFP
-
SpeciesA. victoria
-
Insert Size (bp)720
-
MutationNone
- Promoter 3.6 kb rat type 1 collagen + first intron
-
Tag
/ Fusion Protein
- None
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site Sac2 (not destroyed)
- 3′ cloning site Sal1 (not destroyed)
- 5′ sequencing primer T3
- 3′ sequencing primer T7 (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
GFPtopaz bought from Packard.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pOBCol3.6-GFPtpz was a gift from David Rowe (Addgene plasmid # 110211 ; http://n2t.net/addgene:110211 ; RRID:Addgene_110211) -
For your References section:
Use of type I collagen green fluorescent protein transgenes to identify subpopulations of cells at different stages of the osteoblast lineage. Kalajzic I, Kalajzic Z, Kaliterna M, Gronowicz G, Clark SH, Lichtler AC, Rowe D. J Bone Miner Res. 2002 Jan;17(1):15-25. doi: 10.1359/jbmr.2002.17.1.15. 10.1359/jbmr.2002.17.1.15 PubMed 11771662
