pSB1C3-H3
(Plasmid
#109381)
-
PurposeArabinose inducible VioB-mCherry expression (weaker RBS). Used to test burden response in E. coli
-
Depositing Lab
-

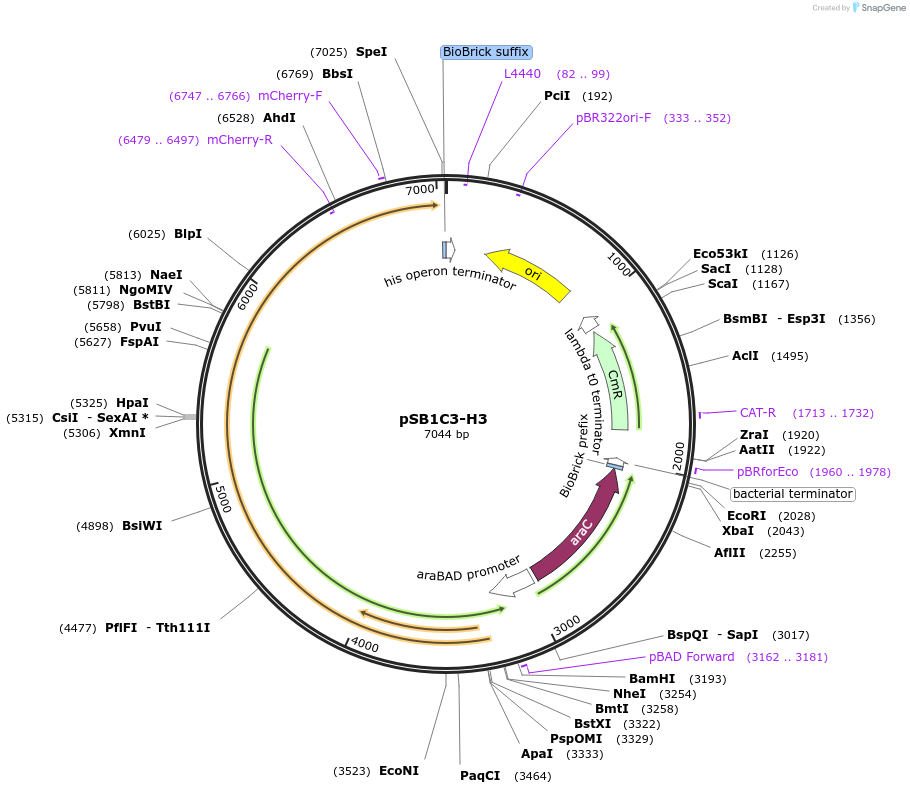

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 109381 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepSB1C3 (pMB1 origin of replication and CmR)
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namepARABAD-VioB-mCherry
Cloning Information
- Cloning method Gibson Cloning
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pSB1C3-H3 was a gift from Tom Ellis (Addgene plasmid # 109381 ; http://n2t.net/addgene:109381 ; RRID:Addgene_109381) -
For your References section:
Burden-driven feedback control of gene expression. Ceroni F, Boo A, Furini S, Gorochowski TE, Borkowski O, Ladak YN, Awan AR, Gilbert C, Stan GB, Ellis T. Nat Methods. 2018 Mar 26. pii: nmeth.4635. doi: 10.1038/nmeth.4635. 10.1038/nmeth.4635 PubMed 29578536
