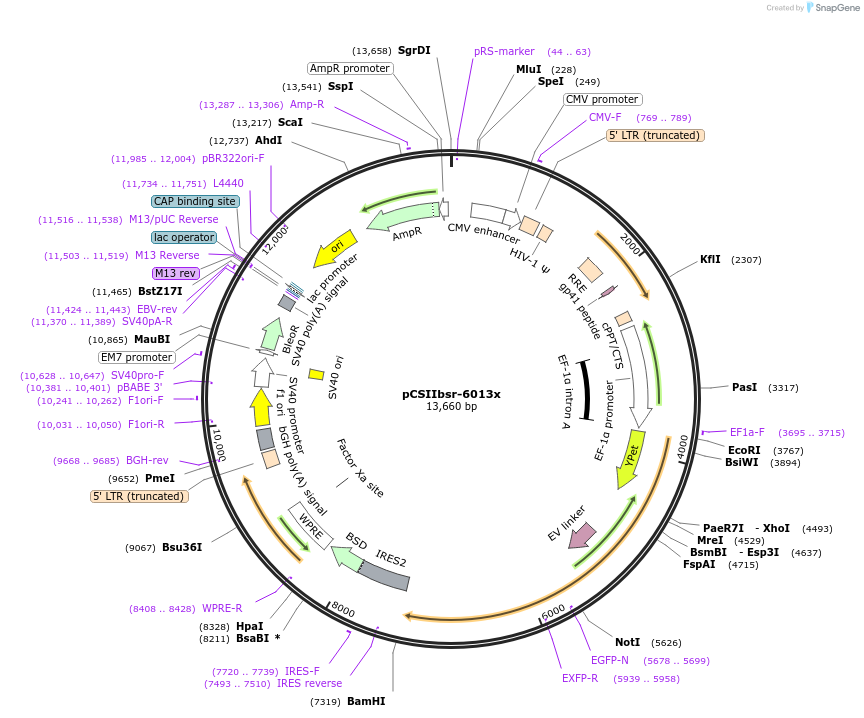

pCSIIbsr-6013x
(Plasmid #108654)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 108654 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pCSIIbsr
  • Backbone size w/o insert (bp) 10000
  • Total vector size (bp) 13663
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Blasticidin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Raichu-EV
  • Species
    S. cerevisiae (budding yeast), Synthetic; aequorea coerulescens
  • Insert Size (bp)
    2300
  • GenBank ID
  • Tag / Fusion Protein
    • XFP (N terminal on insert)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCSIIbsr-6013x was a gift from Michiyuki Matsuda (Addgene plasmid # 108654 ; http://n2t.net/addgene:108654 ; RRID:Addgene_108654)
  • For your References section:

    A platform of BRET-FRET hybrid biosensors for optogenetics, chemical screening, and in vivo imaging. Komatsu N, Terai K, Imanishi A, Kamioka Y, Sumiyama K, Jin T, Okada Y, Nagai T, Matsuda M. Sci Rep. 2018 Jun 12;8(1):8984. doi: 10.1038/s41598-018-27174-x. 10.1038/s41598-018-27174-x PubMed 29895862
