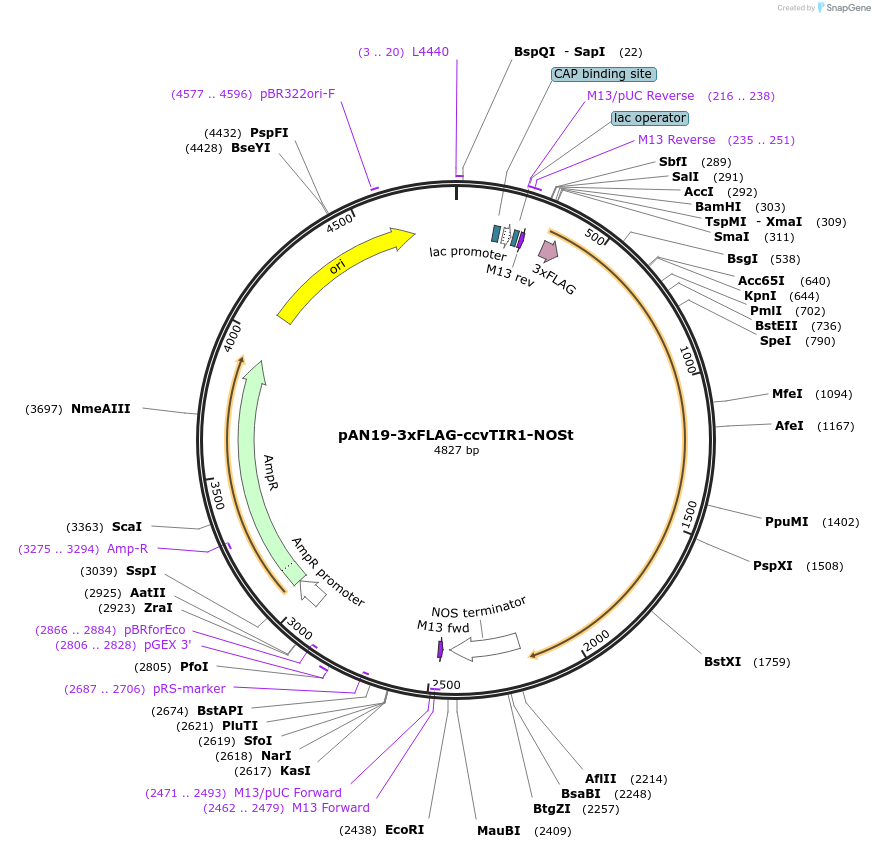

pAN19-3xFLAG-ccvTIR1-NOSt
(Plasmid #108546)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 108546 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pAN19
  • Backbone size w/o insert (bp) 2700
  • Total vector size (bp) 5000
  • Vector type
    Cloning vector

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    TRANSPORT INHIBITOR RESPONSE 1 [F79G] fused with 3xFLAG and NOS terminator
  • Alt name
    ccvTIR1
  • Species
    A. thaliana (mustard weed)
  • Insert Size (bp)
    2118
  • Mutation
    Changed F79 to G
  • Entrez Gene
    TIR1 (a.k.a. AT3G62980, AtTIR1, TRANSPORT INHIBITOR RESPONSE 1)
  • Tag / Fusion Protein
    • 3xFLAG (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SmaI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer gccgattcattaatgcagctg
  • 3′ sequencing primer AAGGGGGATGTGCTGCAAGG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAN19-3xFLAG-ccvTIR1-NOSt was a gift from Keiko Torii (Addgene plasmid # 108546 ; http://n2t.net/addgene:108546 ; RRID:Addgene_108546)

  • For your References section:

    Chemical hijacking of auxin signaling with an engineered auxin-TIR1 pair. Uchida N, Takahashi K, Iwasaki R, Yamada R, Yoshimura M, Endo TA, Kimura S, Zhang H, Nomoto M, Tada Y, Kinoshita T, Itami K, Hagihara S, Torii KU. Nat Chem Biol. 2018 Mar;14(3):299-305. doi: 10.1038/nchembio.2555. Epub 2018 Jan 22. 10.1038/nchembio.2555 PubMed 29355850
