pTol2-UAS-zArchon2-KGC-EGFP-ER2
(Plasmid #108428)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 108428 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

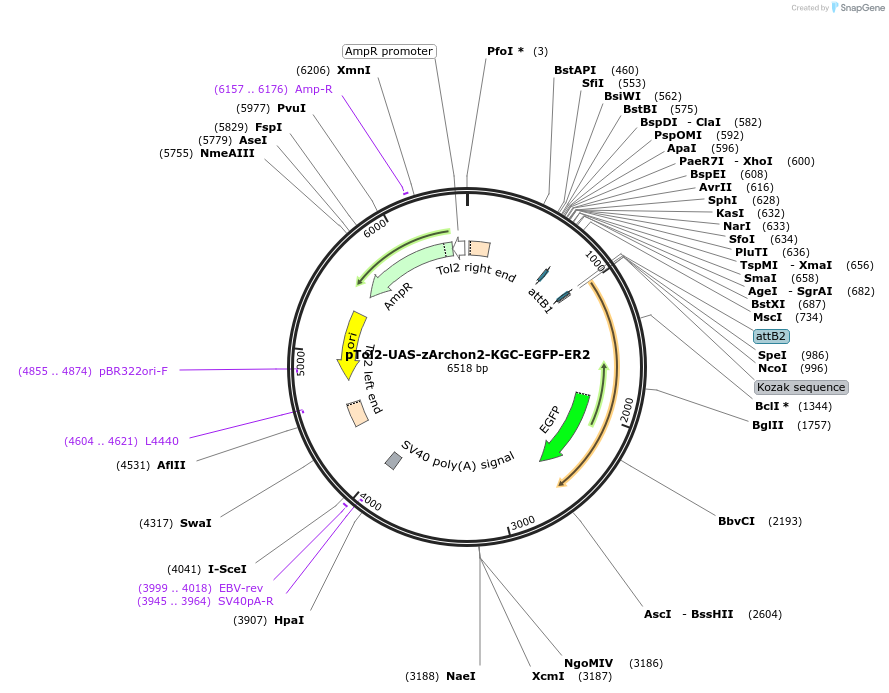

Backbone

  • Vector backbone
    pTol2-UAS
  • Total vector size (bp) 6518
  • Vector type
    Zebrafish

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    zArchon2-KGC-EGFP-ER2
  • Alt name
    zebrafish codon-optimized Archon2-KGC-EGFP-ER2
  • Species
    Synthetic
  • GenBank ID
    MG250283.1
  • Promoter UAS

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer acccagctttcttgtacaaa
  • 3′ sequencing primer ggccgtatcttcgc
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTol2-UAS-zArchon2-KGC-EGFP-ER2 was a gift from Edward Boyden (Addgene plasmid # 108428 ; http://n2t.net/addgene:108428 ; RRID:Addgene_108428)

  • For your References section:

    A robotic multidimensional directed evolution approach applied to fluorescent voltage reporters. Piatkevich KD, Jung EE, Straub C, Linghu C, Park D, Suk HJ, Hochbaum DR, Goodwin D, Pnevmatikakis E, Pak N, Kawashima T, Yang CT, Rhoades JL, Shemesh O, Asano S, Yoon YG, Freifeld L, Saulnier JL, Riegler C, Engert F, Hughes T, Drobizhev M, Szabo B, Ahrens MB, Flavell SW, Sabatini BL, Boyden ES. Nat Chem Biol. 2018 Feb 26. pii: 10.1038/s41589-018-0004-9. doi: 10.1038/s41589-018-0004-9. 10.1038/s41589-018-0004-9 PubMed 29483642
