pSW002-PpsbA_mTurquoise2
(Plasmid
#108237)
-
PurposeBroad host bacterial expression vector with constitutive PsbA promoter. Expresses mTurquoise2; codon optimized for P. fluorescens.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 108237 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepME6031
-
Backbone manufacturerobtained from Culture Collection of Switzerland
- Backbone size w/o insert (bp) 8248
- Total vector size (bp) 9174
-
Modifications to backboneSeveral restriction sites were removed to facilitate cloning
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Tetracycline, 10 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert namePsbA promoter - mTurquoise2
-
SpeciesSynthetic
-
Insert Size (bp)979
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pSW002-PpsbA_mTurquoise2 was a gift from Rosemarie Wilton (Addgene plasmid # 108237 ; http://n2t.net/addgene:108237 ; RRID:Addgene_108237) -
For your References section:
A New Suite of Plasmid Vectors for Fluorescence-Based Imaging of Root Colonizing Pseudomonads. Wilton R, Ahrendt AJ, Shinde S, Sholto-Douglas DJ, Johnson JL, Brennan MB, Kemner KM. Front Plant Sci. 2018 Feb 1;8:2242. doi: 10.3389/fpls.2017.02242. eCollection 2017. 10.3389/fpls.2017.02242 PubMed 29449848

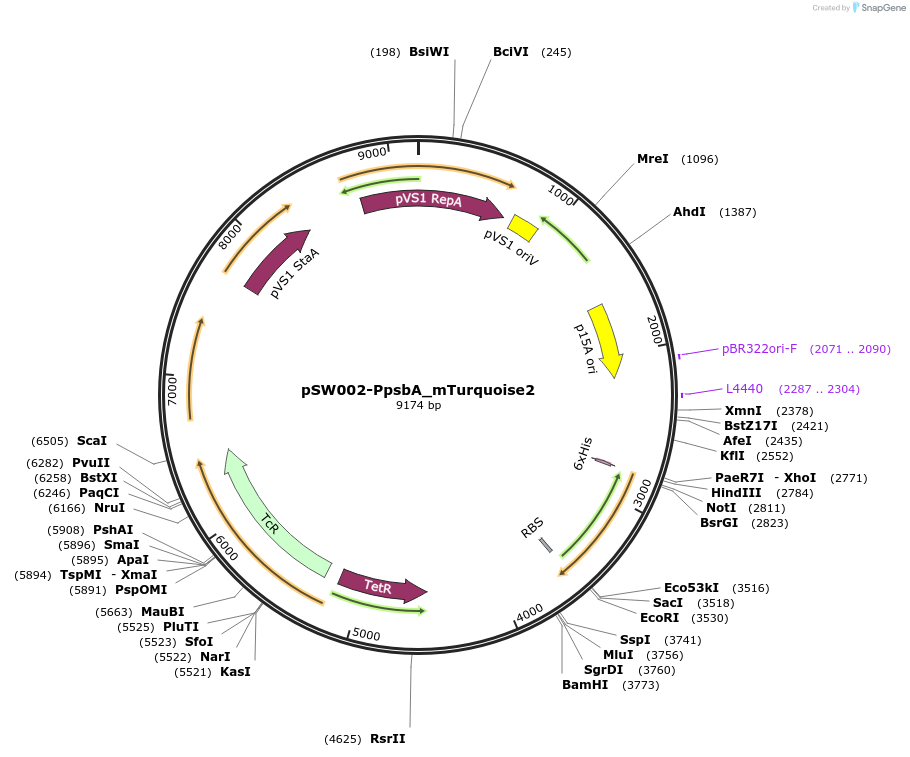

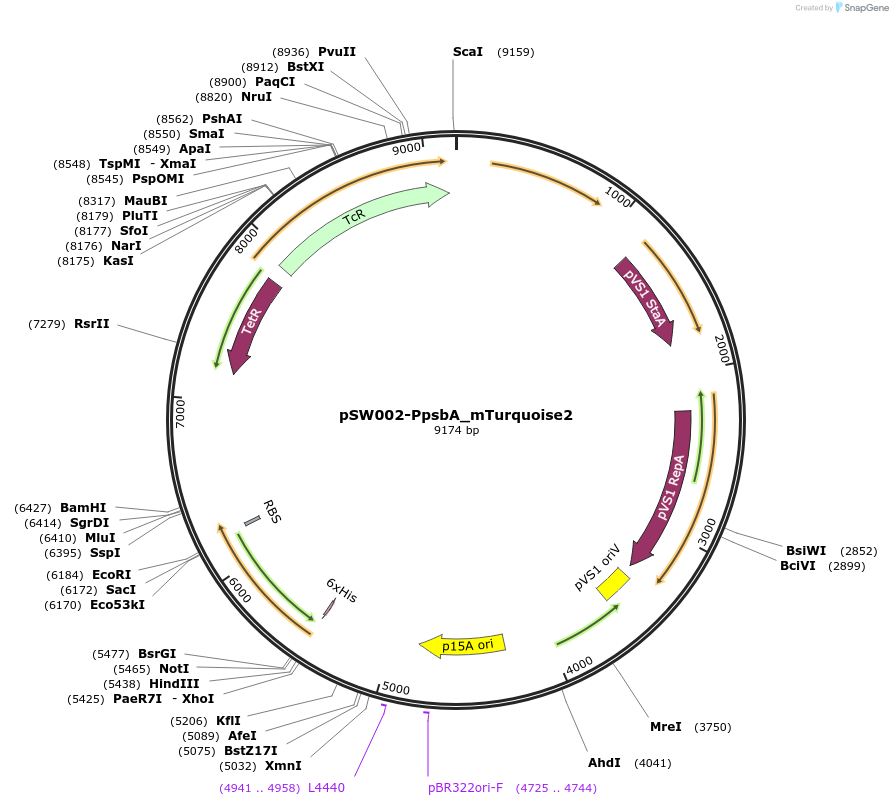

Map uploaded by the depositor.
