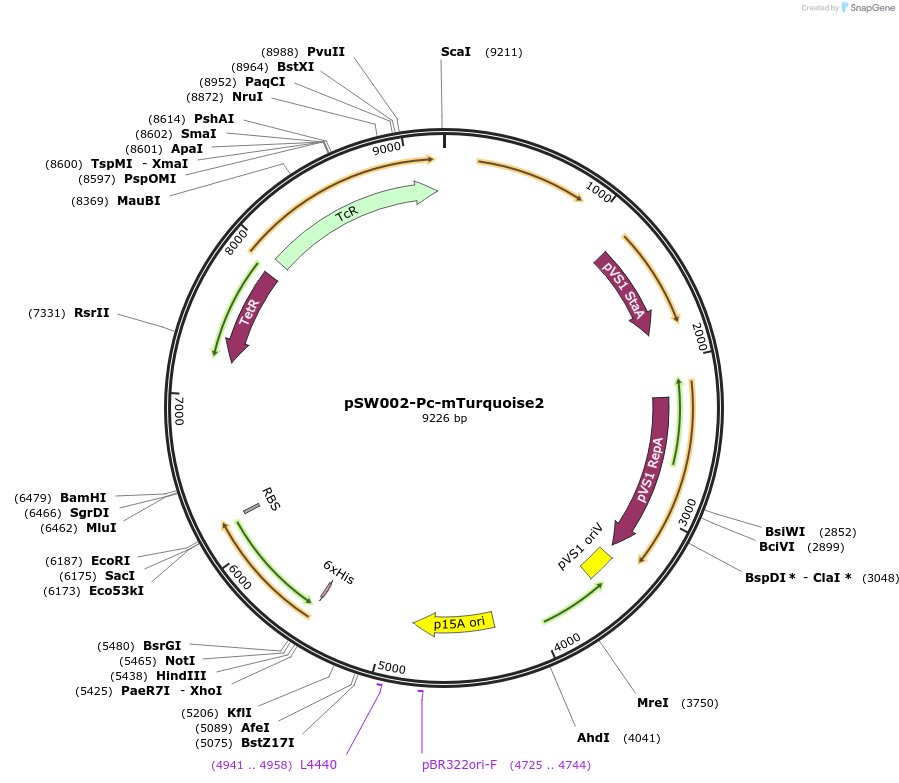

pSW002-Pc-mTurquoise2
(Plasmid #108235)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 108235 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pME6031
  • Backbone manufacturer
    obtained from Culture Collection of Switzerland
  • Backbone size w/o insert (bp) 8248
  • Total vector size (bp) 9226
  • Modifications to backbone
    Several restriction sites were removed to facilitate cloning
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Tetracycline, 10 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Pc promoter - mTurquoise2
  • Species
    Synthetic
  • Insert Size (bp)
    1031
  • Mutation
    codon optimized for experession in P. fluorescens

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSW002-Pc-mTurquoise2 was a gift from Rosemarie Wilton (Addgene plasmid # 108235 ; http://n2t.net/addgene:108235 ; RRID:Addgene_108235)
  • For your References section:

    A New Suite of Plasmid Vectors for Fluorescence-Based Imaging of Root Colonizing Pseudomonads. Wilton R, Ahrendt AJ, Shinde S, Sholto-Douglas DJ, Johnson JL, Brennan MB, Kemner KM. Front Plant Sci. 2018 Feb 1;8:2242. doi: 10.3389/fpls.2017.02242. eCollection 2017. 10.3389/fpls.2017.02242 PubMed 29449848
