mCherry-FKBP-SAC1-HLx2
(Plasmid #108133)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 108133 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

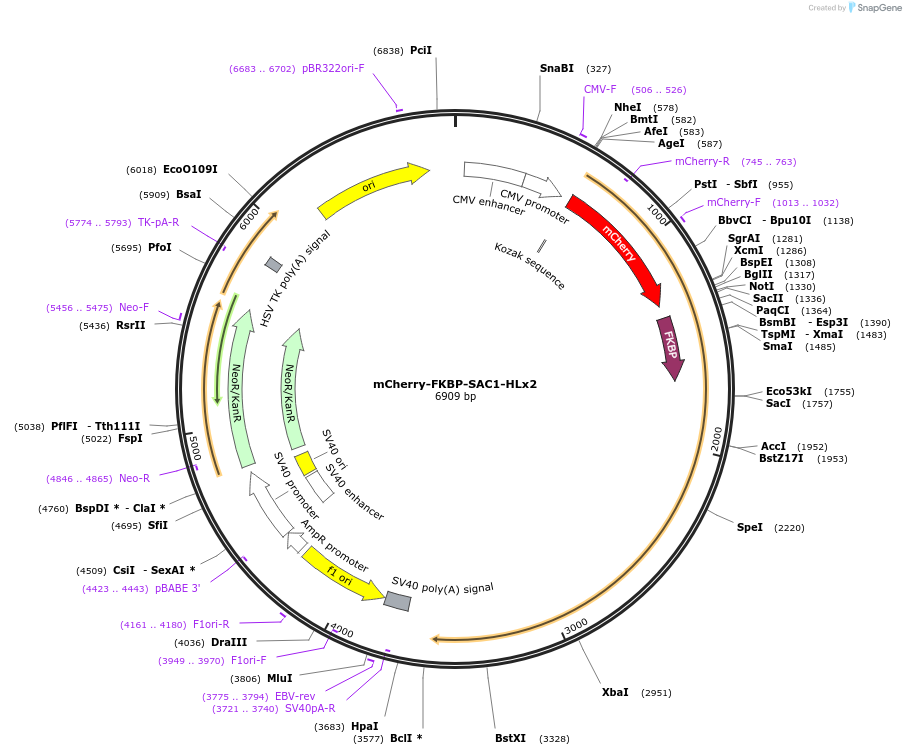

Backbone

  • Vector backbone
    pmCherry-C1
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mCherry:FKBP1A(3-108):[GGSA]4GG::SACM1L(1-520):[EAAAR]2:SACM1L(521-587)
  • Species
    H. sapiens (human)
  • Mutation
    SACM1L(1-520):[EAAAR]2:SACM1L(521-587)
  • Entrez Gene
    SACM1L (a.k.a. SAC1)
  • Promoter CMV

Cloning Information

  • Cloning method Gibson Cloning

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Dep confirmed that Y434F is a common point mutation that does not affect plasmid function. Updated plasmid information.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    mCherry-FKBP-SAC1-HLx2 was a gift from Gerry Hammond (Addgene plasmid # 108133 ; http://n2t.net/addgene:108133 ; RRID:Addgene_108133)

  • For your References section:

    SAC1 degrades its lipid substrate PtdIns4P in the endoplasmic reticulum to maintain a steep chemical gradient with donor membranes. Zewe JP, Wills RC, Sangappa S, Goulden BD, Hammond GR. Elife. 2018 Feb 20;7. pii: 35588. doi: 10.7554/eLife.35588. 35588 [pii] PubMed 29461204
