pcDNA 3.1(-) mouse Egr4
(Plasmid #108096)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 108096 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

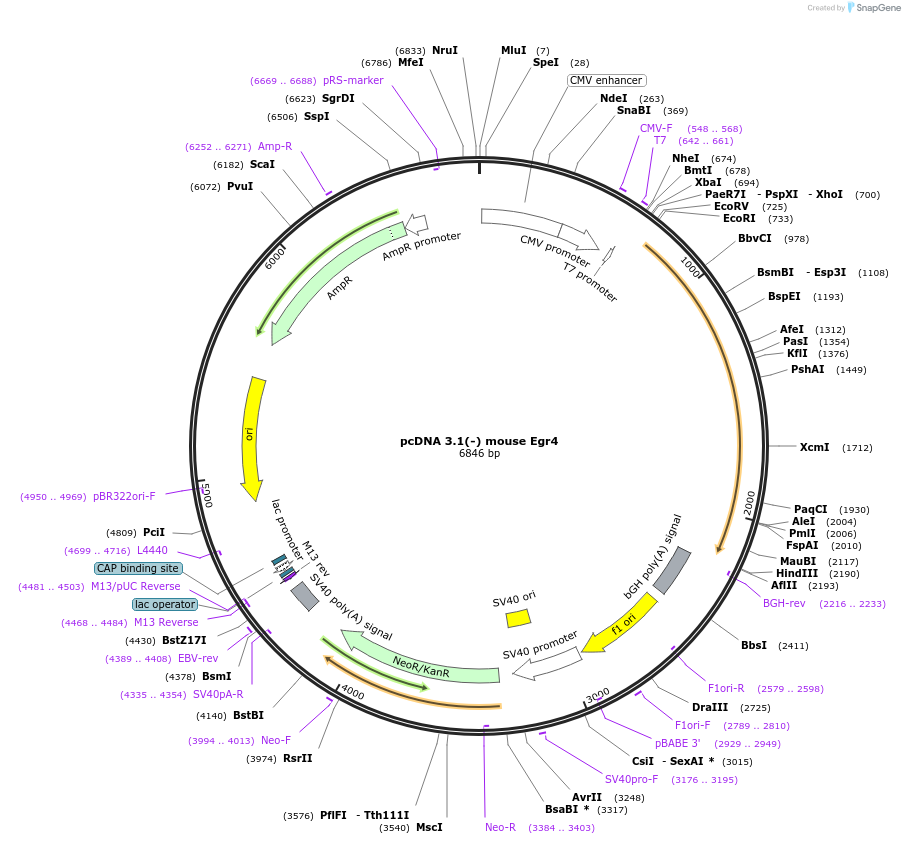

Backbone

  • Vector backbone
    pcDNA3.1(-)
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5427
  • Total vector size (bp) 6878
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Egr4
  • Alt name
    Early growth response 4
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    1437
  • GenBank ID
    NM_020596.2
  • Entrez Gene
    Egr4 (a.k.a. NGF1-C, NGFI-C, NGFIC, pAT133)
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer BGH-rev
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

A Sal I site was introduced before the HindIII site to further transfer to pBabe.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA 3.1(-) mouse Egr4 was a gift from Peter Johnson (Addgene plasmid # 108096 ; http://n2t.net/addgene:108096 ; RRID:Addgene_108096)

  • For your References section:

    An Arf-Egr-C/EBPbeta pathway linked to ras-induced senescence and cancer. Salotti J, Sakchaisri K, Tourtellotte WG, Johnson PF. Mol Cell Biol. 2015 Mar;35(5):866-83. doi: 10.1128/MCB.01489-14. Epub 2014 Dec 22. 10.1128/MCB.01489-14 PubMed 25535333
