Purposepie-1p::mCherry(dpiRNA)::ANI-1(AHPH)::pie-1 3'UTR construct used for MosSCI in nematode. mCherry is optimized by removing all piRNA targeting sites to allow germline expression. RhoA biosenser.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 107939 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |

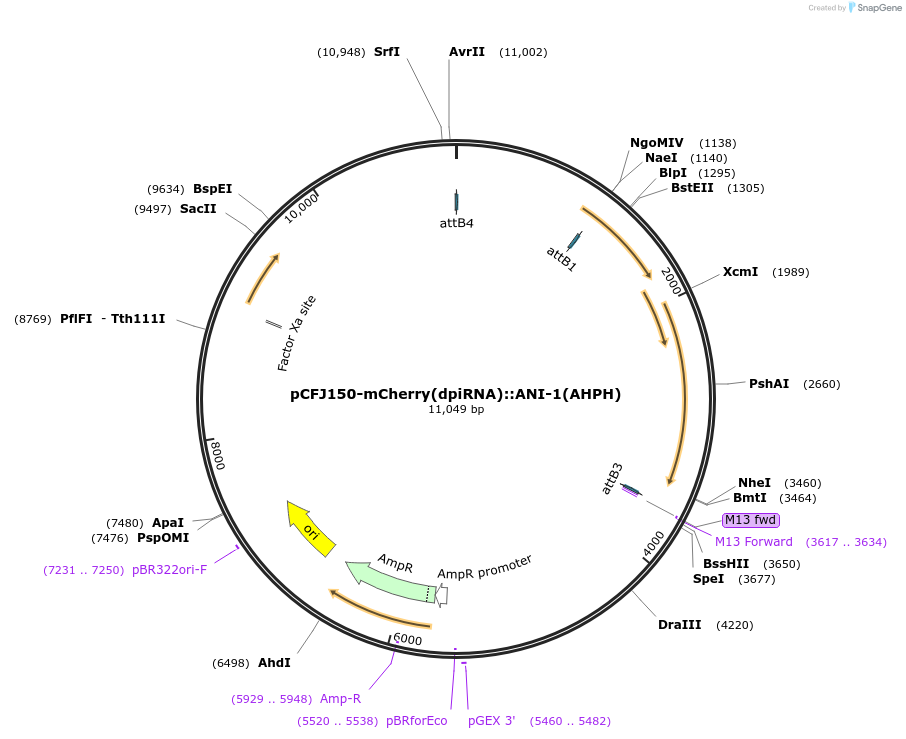

Backbone
-
Vector backbonepCFJ150
- Total vector size (bp) 11043
-
Vector typeWorm Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namemCherry(dpiRNA)::ANI-1(AHPH)
-
SpeciesC. elegans (nematode)
-
Insert Size (bp)2306
- Promoter pie-1
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer TTGCAGTATTTCGTTTCCCAAAC
- 3′ sequencing primer M13F (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCFJ150-mCherry(dpiRNA)::ANI-1(AHPH) was a gift from Heng-Chi Lee (Addgene plasmid # 107939 ; http://n2t.net/addgene:107939 ; RRID:Addgene_107939) -
For your References section:
The piRNA targeting rules and the resistance to piRNA silencing in endogenous genes. Zhang D, Tu S, Stubna M, Wu WS, Huang WC, Weng Z, Lee HC. Science. 2018 Feb 2;359(6375):587-592. doi: 10.1126/science.aao2840. Epub 2018 Feb 1. 10.1126/science.aao2840 PubMed 29420292
