Purpose(Empty Backbone) AtU6 Promoter-LwaCas13a-gRNA Scaffold
-
Depositing Lab
-

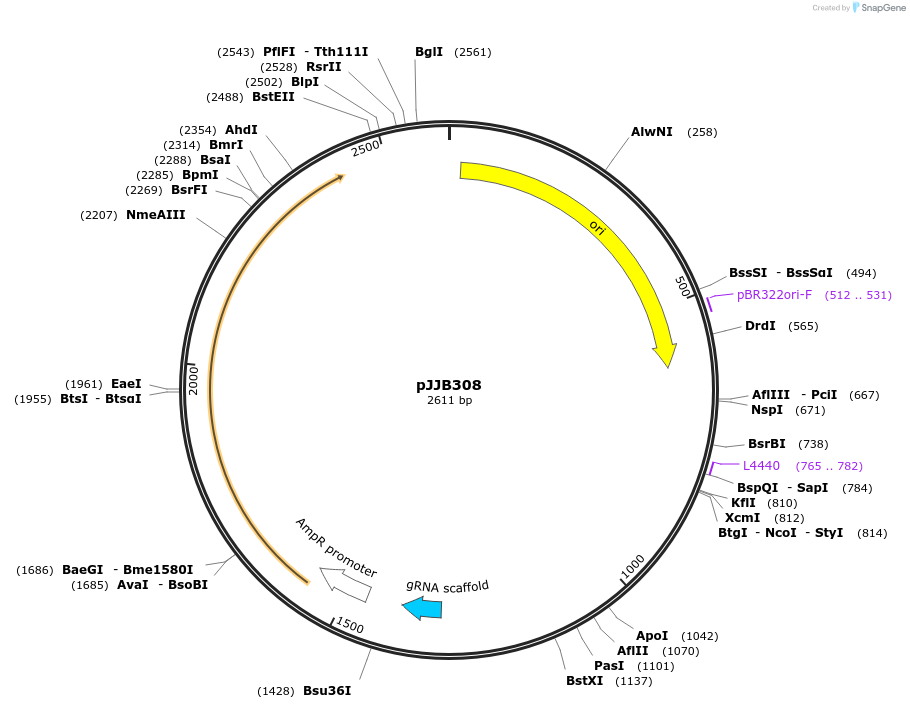

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 107699 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepMOD_B
-
Vector typePlant Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer GGAAGAGCGCCCACCTGC
- 3′ sequencing primer CAAATAGGGGTTCATCGCAC (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
This is a MOD_B plasmid compatible with the Cermek et al. toolkit.
https://www.addgene.org/browse/article/28189956/
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJJB308 was a gift from Daniel Voytas (Addgene plasmid # 107699 ; http://n2t.net/addgene:107699 ; RRID:Addgene_107699) -
For your References section:
RNA targeting with CRISPR-Cas13. Abudayyeh OO, Gootenberg JS, Essletzbichler P, Han S, Joung J, Belanto JJ, Verdine V, Cox DBT, Kellner MJ, Regev A, Lander ES, Voytas DF, Ting AY, Zhang F. Nature. 2017 Oct 4. doi: 10.1038/nature24049. 10.1038/nature24049 PubMed 28976959
