p3E-U6a
(Plasmid
#107593)
-
PurposeAn entry vector with U6a promoter driving guide RNA expression
-
Depositing Lab
-

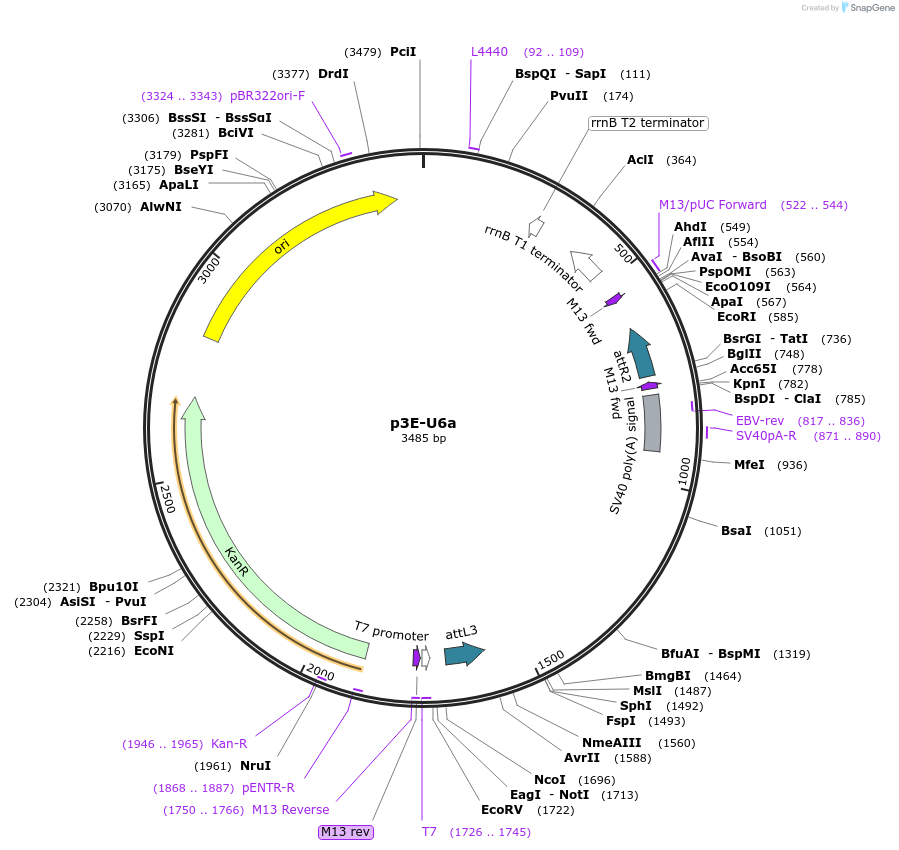

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 107593 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonep3E
- Backbone size w/o insert (bp) 2651
- Total vector size (bp) 3485
-
Modifications to backbonea polyA was inserted into the backbone
-
Vector typeCRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameU6a promoter
-
SpeciesD. rerio (zebrafish)
-
Insert Size (bp)846
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
infusion cloning was used
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
p3E-U6a was a gift from Qing Deng (Addgene plasmid # 107593 ; http://n2t.net/addgene:107593 ; RRID:Addgene_107593) -
For your References section:
Neutrophil-specific knockout demonstrates a role for mitochondria in regulating neutrophil motility in zebrafish. Zhou W, Cao L, Jeffries J, Zhu X, Staiger CJ, Deng Q. Dis Model Mech. 2018 Mar 28;11(3). pii: dmm.033027. doi: 10.1242/dmm.033027. 10.1242/dmm.033027 PubMed 29590639
