pJKW0457
(Plasmid
#107586)
-
Purpose(Empty Backbone) AtU6-26 sgRNA
-
Depositing Lab
-
Publication
-

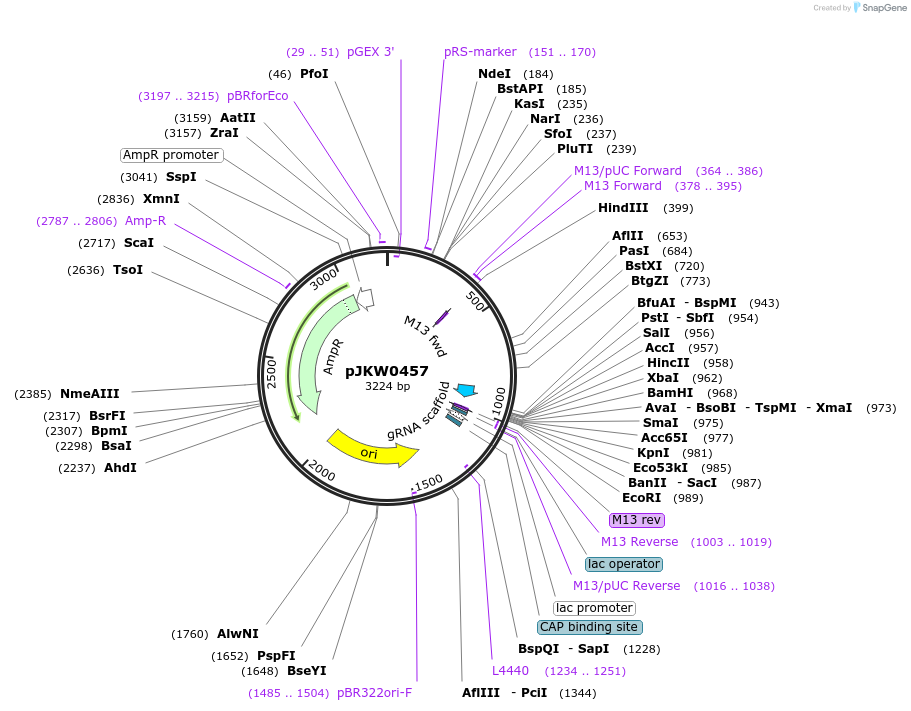

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 107586 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepUC18
-
Backbone manufacturerMessing Lab
- Backbone size (bp) 2600
-
Modifications to backboneAtU6-26 sgRNA fragment was cloned into Hind III SbfI digested pUC18 by Gibson assembly. AtU6-26 sgRNA fragment was synthesized.
-
Vector typePlant Expression, CRISPR
- Promoter AtU6-26
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CAACGGAAACTCGACTTG (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJKW0457 was a gift from Jing-Ke Weng (Addgene plasmid # 107586 ; http://n2t.net/addgene:107586 ; RRID:Addgene_107586)
