FoxFTVC+bpFOG_Cdkn1b.b
(Plasmid #107524)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 107524 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

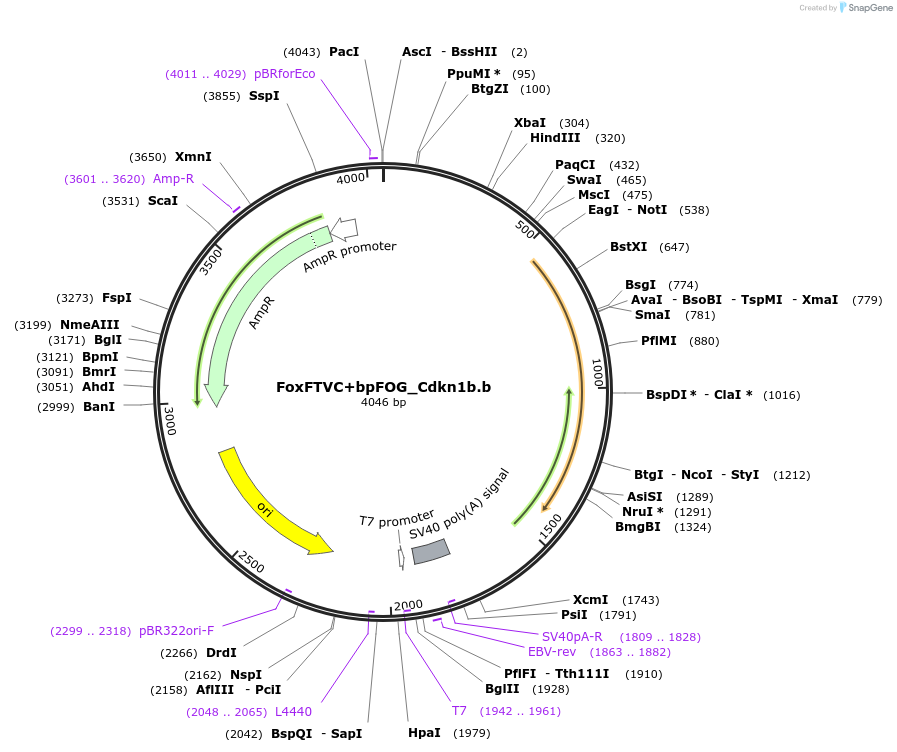

Backbone

  • Vector backbone
    pCESA
  • Backbone size w/o insert (bp) 2600
  • Total vector size (bp) 4046

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Cdkn1b.b
  • Alt name
    Noto16 (G1/S transition inhibitor)
  • Species
    C. Robusta
  • Insert Size (bp)
    891
  • Promoter TVC-specific FoxF enhancer (FoxFTVC+bpFOG)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AscI (unknown if destroyed)
  • 3′ cloning site NotI (unknown if destroyed)
  • 5′ sequencing primer cattaacctataaaaataggcgtatca
  • 3′ sequencing primer ggatttccttacgcgaaatacg
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    FoxFTVC+bpFOG_Cdkn1b.b was a gift from Lionel Christiaen (Addgene plasmid # 107524 ; http://n2t.net/addgene:107524 ; RRID:Addgene_107524)

  • For your References section:

    An FGF-driven feed-forward circuit patterns the cardiopharyngeal mesoderm in space and time. Razy-Krajka F, Gravez B, Kaplan N, Racioppi C, Wang W, Christiaen L. Elife. 2018 Feb 6;7. pii: 29656. doi: 10.7554/eLife.29656. PubMed 29431097
