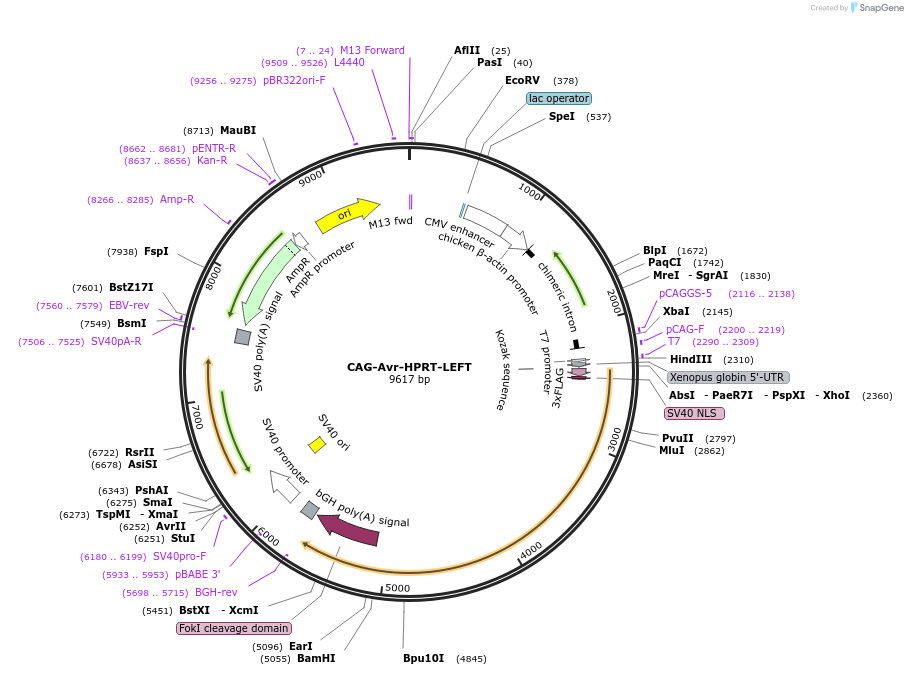

CAG-Avr-HPRT-LEFT
(Plasmid #107271)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 107271 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    ptCMV-136/63-VR
  • Modifications to backbone
    CAG promoter
  • Vector type
    Mammalian Expression, TALEN
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    HPRT1_B Avr-TALEN (left)
  • Promoter CAG
  • Tag / Fusion Protein
    • 3xFLAG (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Esp3I (destroyed during cloning)
  • 3′ cloning site Esp3I (destroyed during cloning)
  • 5′ sequencing primer T7
  • 3′ sequencing primer BGH-rev
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    CAG-Avr-HPRT-LEFT was a gift from Knut Woltjen (Addgene plasmid # 107271 ; http://n2t.net/addgene:107271 ; RRID:Addgene_107271)

  • For your References section:

    Microhomology-assisted scarless genome editing in human iPSCs. Kim SI, Matsumoto T, Kagawa H, Nakamura M, Hirohata R, Ueno A, Ohishi M, Sakuma T, Soga T, Yamamoto T, Woltjen K. Nat Commun. 2018 Mar 5;9(1):939. doi: 10.1038/s41467-018-03044-y. 10.1038/s41467-018-03044-y PubMed 29507284
