PurposeMammalian expression plasmid to target the ecAT3.10 extracellular ATP sensor to the cell surface.
-
Depositing Lab
-

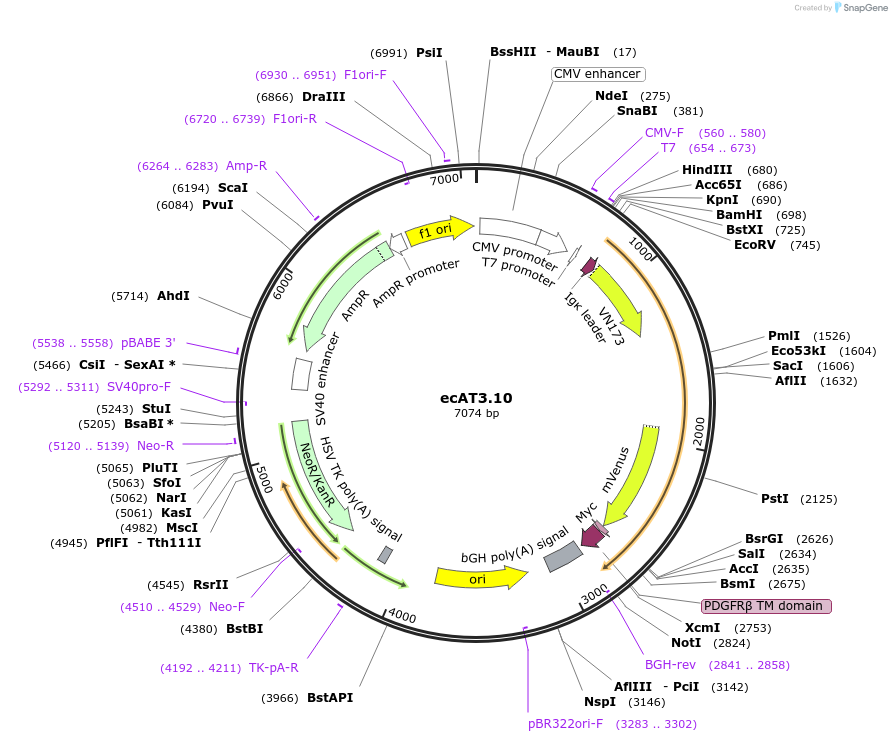

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 107215 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepCMV(MinDis) [variant of pDisplay]
-
Backbone manufacturermodified from Invitrogen
- Backbone size w/o insert (bp) 5000
- Total vector size (bp) 7074
-
Modifications to backboneFrom pDisplay: Hemagglutinin (HA) tag removed
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameecAT3.10
-
SpeciesSynthetic
-
Insert Size (bp)2070
- Promoter CMV
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CMV Forward
- 3′ sequencing primer BGHR (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
ecAT3.10 was a gift from Mathew Tantama (Addgene plasmid # 107215 ; http://n2t.net/addgene:107215 ; RRID:Addgene_107215) -
For your References section:
Imaging extracellular ATP with a genetically-encoded, ratiometric fluorescent sensor. Conley JM, Radhakrishnan S, Valentino SA, Tantama M. PLoS One. 2017 Nov 9;12(11):e0187481. doi: 10.1371/journal.pone.0187481. eCollection 2017. PONE-D-17-19632 [pii] PubMed 29121644
