pBHt2G-RFP
(Plasmid
#107162)
-
Purpose(Empty Backbone) Golden-Gate compatible fungal transformation vector carrying Hygromycin Resistance w RFP screening cassette (RFP knocked out by GG reaction, allowing for red-white screening)
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 107162 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

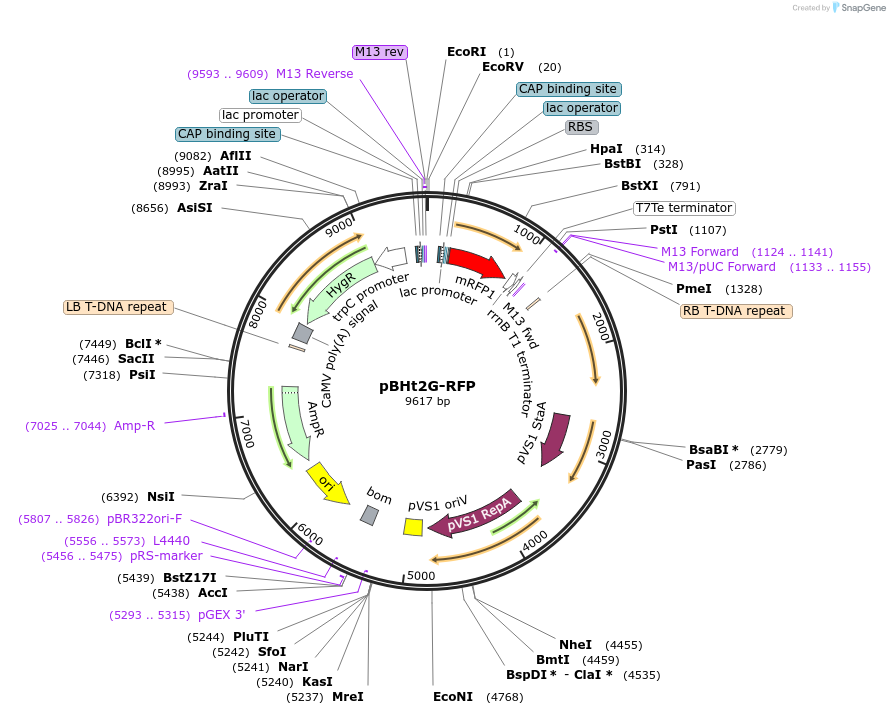

Backbone
-
Vector backbonepBHt2G
-
Backbone manufacturerKhang et al, 2010 http://www.plantcell.org/content/22/4/1388
- Backbone size (bp) 9617
-
Modifications to backboneRemoval of BsaI sites to domesticate backbone for Golden Gate (GG) cloning. Addition of an RFP marker for red-white selection in E. coli. The RFP is flanked by two BsaI sites. GG reaction leads to the loss of the RFP when the gene is inserted. The RFP is expressed in E. coli, allowing for red-white selection of transformants. Antibiotic resistance changed to Ampicillin
-
Vector typeFungal grobacterium transformation plasmid, tested in Magnaporthe
-
Selectable markersHygromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Golden-Gate compatible Magnaporthe oryzae Agrobacterium transformation vectors. Pennington HG, Youles M, Kamoun S. Figshare (2018) 10.6084/m9.figshare.5808348
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBHt2G-RFP was a gift from Sophien Kamoun (Addgene plasmid # 107162 ; http://n2t.net/addgene:107162 ; RRID:Addgene_107162)
