pET15b-YC
(Plasmid
#107072)
-
PurposeHost vector to construct a YPer or CyPet fusion protein
-
Depositing Lab
-

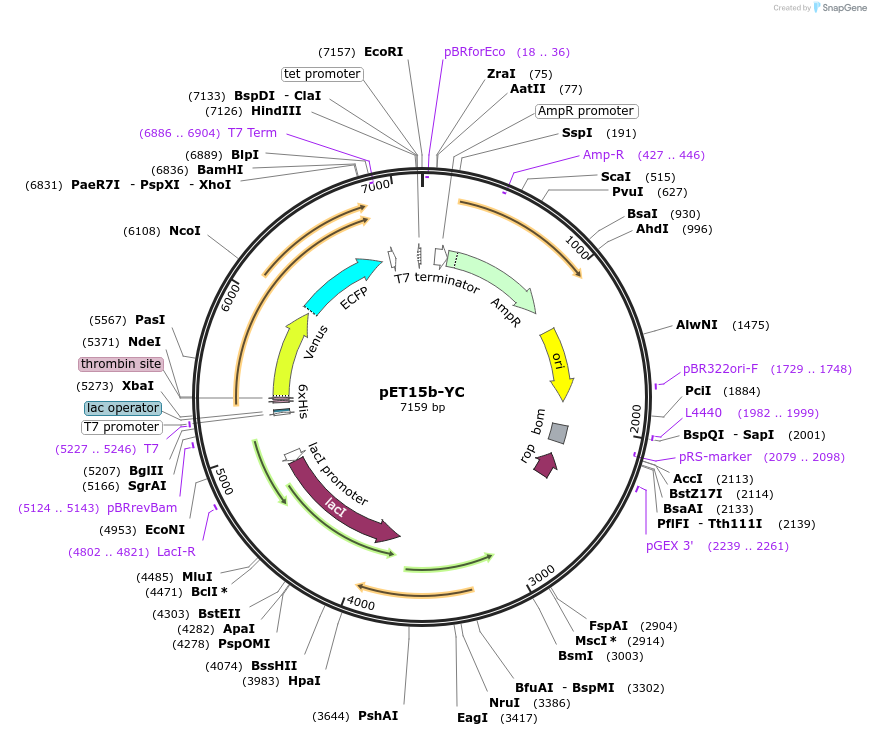

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 107072 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepET-15b
-
Backbone manufacturerMerck Millipore
- Backbone size w/o insert (bp) 5700
- Total vector size (bp) 7200
-
Modifications to backboneNcoI site was removed and a stop codon was inserted after BamHI site.
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameYPet-CyPet fusion protein
-
SpeciesSynthetic
-
Insert Size (bp)1550
- Promoter T7 promoter
-
Tag
/ Fusion Protein
- His6 tag (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NdeI (not destroyed)
- 3′ cloning site BamHI (not destroyed)
- 5′ sequencing primer T7
- 3′ sequencing primer T7 Terminal (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pET15b-YC was a gift from Teruyuki Nagamune (Addgene plasmid # 107072 ; http://n2t.net/addgene:107072 ; RRID:Addgene_107072) -
For your References section:
Three proliferating cell nuclear antigen homologues from Metallosphaera sedula form a head-to-tail heterotrimer. Iwata F, Hirakawa H, Nagamune T. Sci Rep. 2016 May 27;6:26588. doi: 10.1038/srep26588. 10.1038/srep26588 PubMed 27228945
