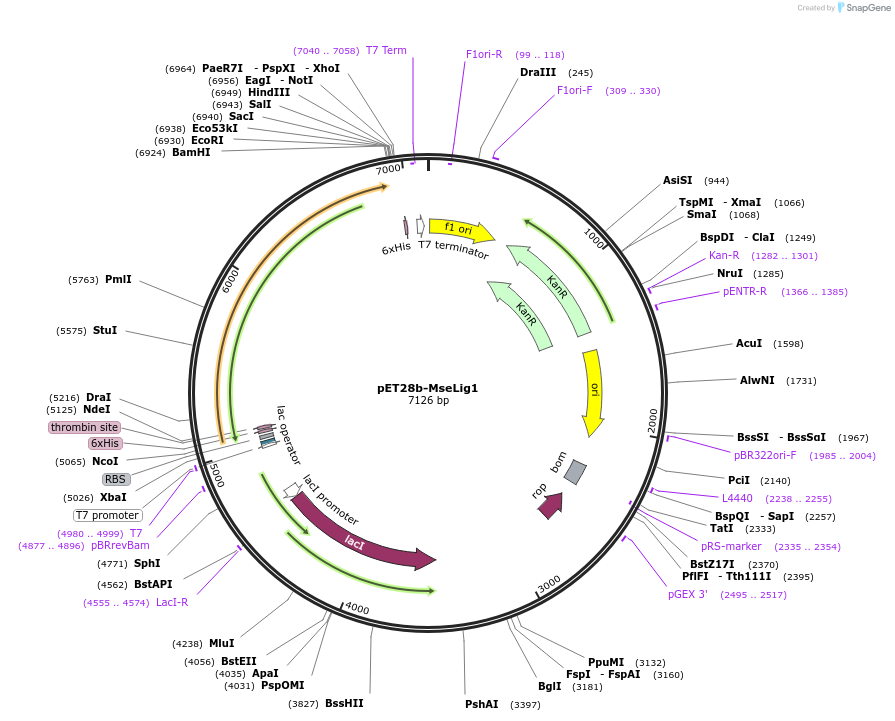

pET28b-MseLig1
(Plasmid #107071)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 107071 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pET-28b(+)
  • Backbone manufacturer
    Merck Millipore
  • Backbone size w/o insert (bp) 5400
  • Total vector size (bp) 7100
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    DNA ligase 1
  • Alt name
    Msed_0150
  • Species
    Synthetic; Metallosphaera sedula
  • Insert Size (bp)
    620
  • GenBank ID
    WP_011921295
  • Promoter T7 promoter
  • Tag / Fusion Protein
    • His6 tag (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer T7
  • 3′ sequencing primer T7 Terminal
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pET28b-MseLig1 was a gift from Teruyuki Nagamune (Addgene plasmid # 107071 ; http://n2t.net/addgene:107071 ; RRID:Addgene_107071)

  • For your References section:

    Three proliferating cell nuclear antigen homologues from Metallosphaera sedula form a head-to-tail heterotrimer. Iwata F, Hirakawa H, Nagamune T. Sci Rep. 2016 May 27;6:26588. doi: 10.1038/srep26588. 10.1038/srep26588 PubMed 27228945
