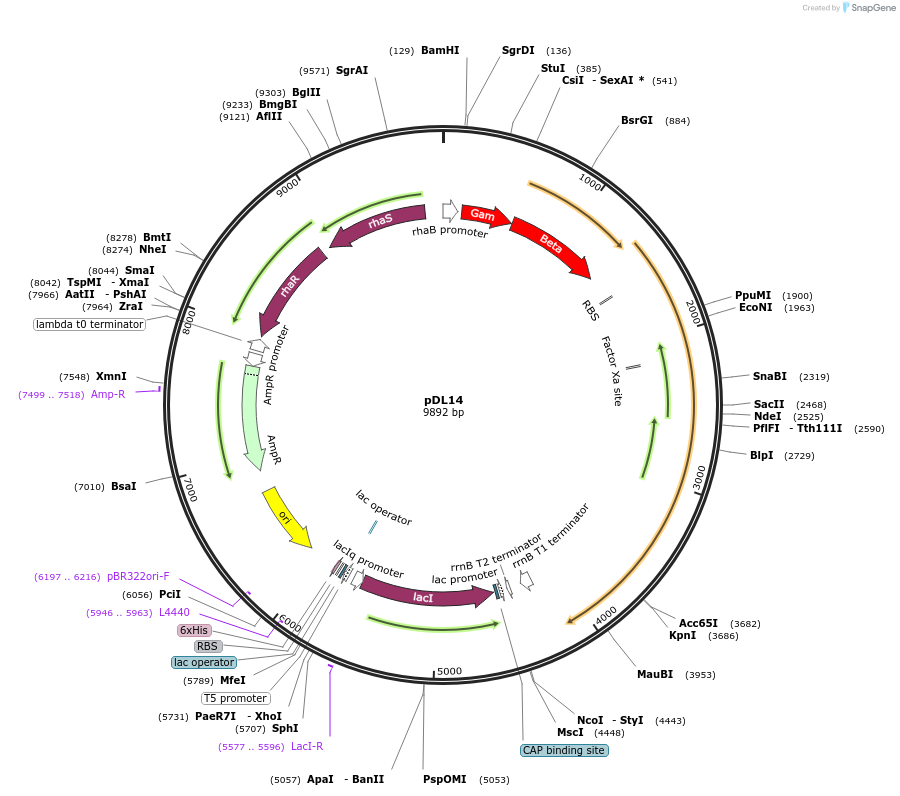

pDL14
(Plasmid #106901)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 106901 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pQE-30
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Growth instructions
    pDL14 is conditionally replicating plasmid. The plasmid can not replicate in presense of IPTG or lactose.
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    gam
  • Species
    lambda phage
  • Insert Size (bp)
    417

Gene/Insert 2

  • Gene/Insert name
    bet
  • Species
    lambda phage
  • Insert Size (bp)
    786

Gene/Insert 3

  • Gene/Insert name
    mutS
  • Species
    Salmonella enterica LT2
  • Insert Size (bp)
    2568
  • Mutation
    Lysine 622 was replaced by Alanine

Gene/Insert 4

  • Gene/Insert name
    lacI
  • Species
    Escherichia coli
  • Insert Size (bp)
    1083

Gene/Insert 5

  • Gene/Insert name
    rhaR
  • Species
    Escherichia coli
  • Insert Size (bp)
    849

Gene/Insert 6

  • Gene/Insert name
    rhaS
  • Species
    Escherichia coli
  • Insert Size (bp)
    837

Resource Information

  • Supplemental Documents

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pDL14 was a gift from Sergey Sineoky (Addgene plasmid # 106901 ; http://n2t.net/addgene:106901 ; RRID:Addgene_106901)
  • For your References section:

    Development of new versatile plasmid-based systems for lambdaRed-mediated Escherichia coli genome engineering. Bubnov DM, Yuzbashev TV, Vybornaya TV, Netrusov AI, Sineoky SP. J Microbiol Methods. 2018 Jun 7. pii: S0167-7012(18)30368-3. doi: 10.1016/j.mimet.2018.06.001. 10.1016/j.mimet.2018.06.001 PubMed 29885886
