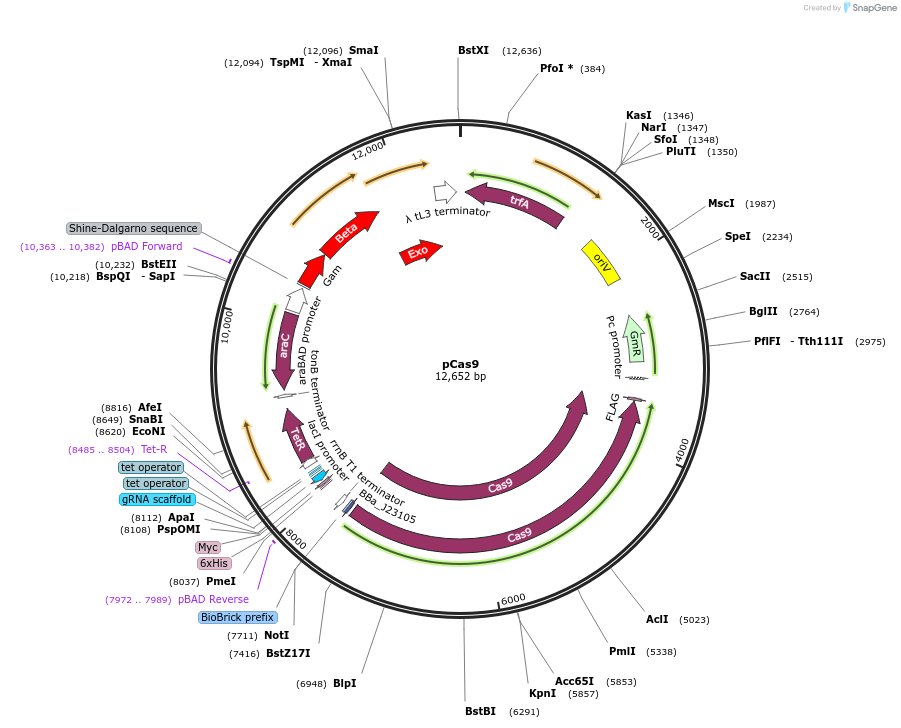

PurposeRecombineering plasmid with constitutively expressed cas9 and the araBAD promoter expressing αβγ
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 106396 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepSEVA224
-
Vector typeBacterial Expression, CRISPR, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Gentamicin, 10 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert 1
-
Gene/Insert namecas9
-
SpeciesStreptococcus pyogenes
- Promoter J23105
Cloning Information for Gene/Insert 1
- Cloning method Gibson Cloning
- 5′ sequencing primer na (Common Sequencing Primers)
Gene/Insert 2
-
Gene/Insert nameLambda red genes
-
SpeciesLambda bacteriophage
- Promoter araBAD
Cloning Information for Gene/Insert 2
- Cloning method Gibson Cloning
- 5′ sequencing primer na (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please note that some discrepancies were found between Addgene's quality control and the depositor's genbank sequence. The depositor noted that these discrepancies do NOT affect plasmid function.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCas9 was a gift from Brian Pfleger (Addgene plasmid # 106396) -
For your References section:
Genetic tools for reliable gene expression and recombineering in Pseudomonas putida. Cook TB, Rand JM, Nurani W, Courtney DK, Liu SA, Pfleger BF. J Ind Microbiol Biotechnol. 2018 Jan 3. pii: 10.1007/s10295-017-2001-5. doi: 10.1007/s10295-017-2001-5. 10.1007/s10295-017-2001-5 [pii] PubMed 29299733
