pHAGE-BFP
(Plasmid
#106282)
-
PurposeA version of the pHAGE vector with BFP and dsRed expressed separated by an IRES. Note that dsRed is not expressed.
-
Depositing Lab
-

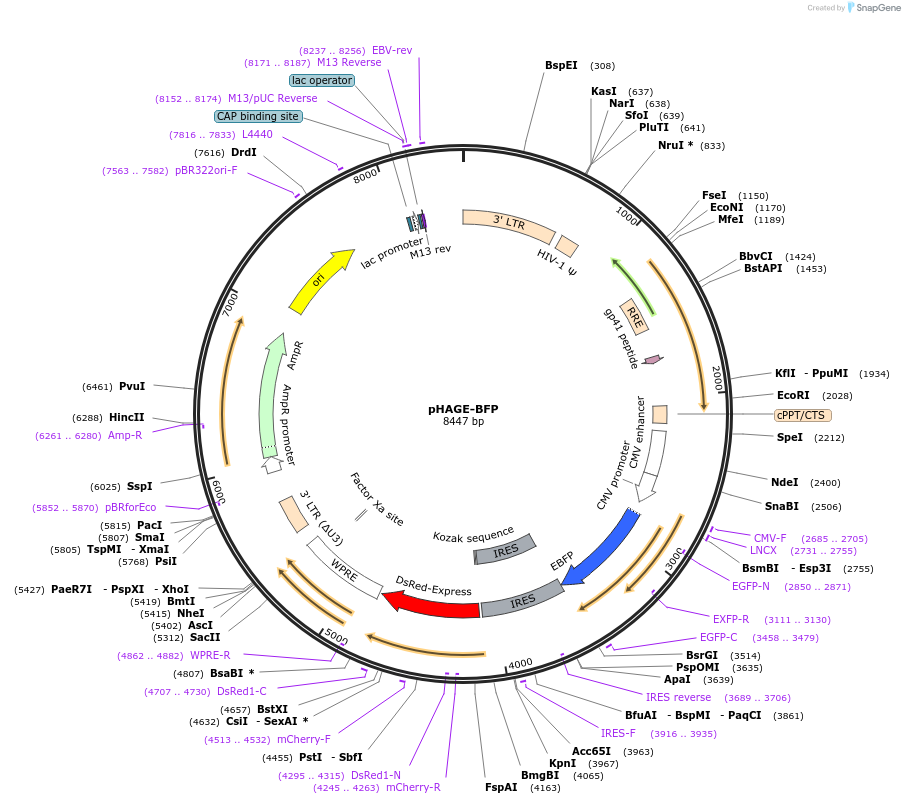

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 106282 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepHAGE
- Total vector size (bp) 8442
-
Vector typeMammalian Expression, Lentiviral, CRISPR
-
Selectable markersBFP
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCMV-BFP-IRES-DSRED(NOT-EXPRESSED)-WPRE-MCS
-
SpeciesSynthetic
- Promoter CMV
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CMV-F (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pHAGE-BFP was a gift from Jay Shendure (Addgene plasmid # 106282 ; http://n2t.net/addgene:106282 ; RRID:Addgene_106282) -
For your References section:
On the design of CRISPR-based single-cell molecular screens. Hill AJ, McFaline-Figueroa JL, Starita LM, Gasperini MJ, Matreyek KA, Packer J, Jackson D, Shendure J, Trapnell C. Nat Methods. 2018 Feb 19. pii: nmeth.4604. doi: 10.1038/nmeth.4604. 10.1038/nmeth.4604 PubMed 29457792
