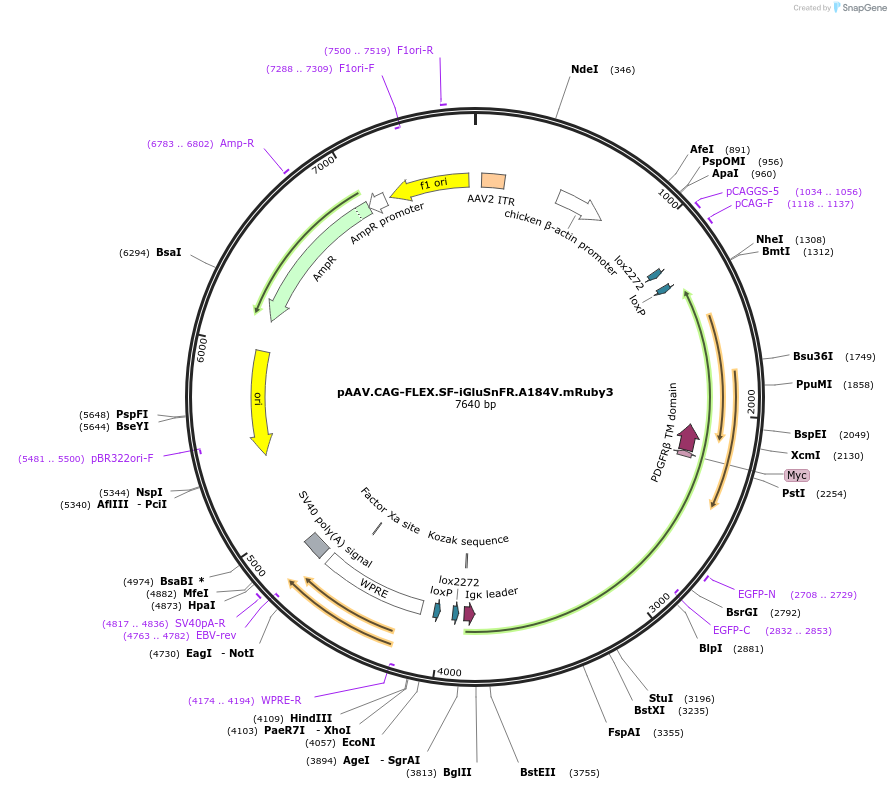

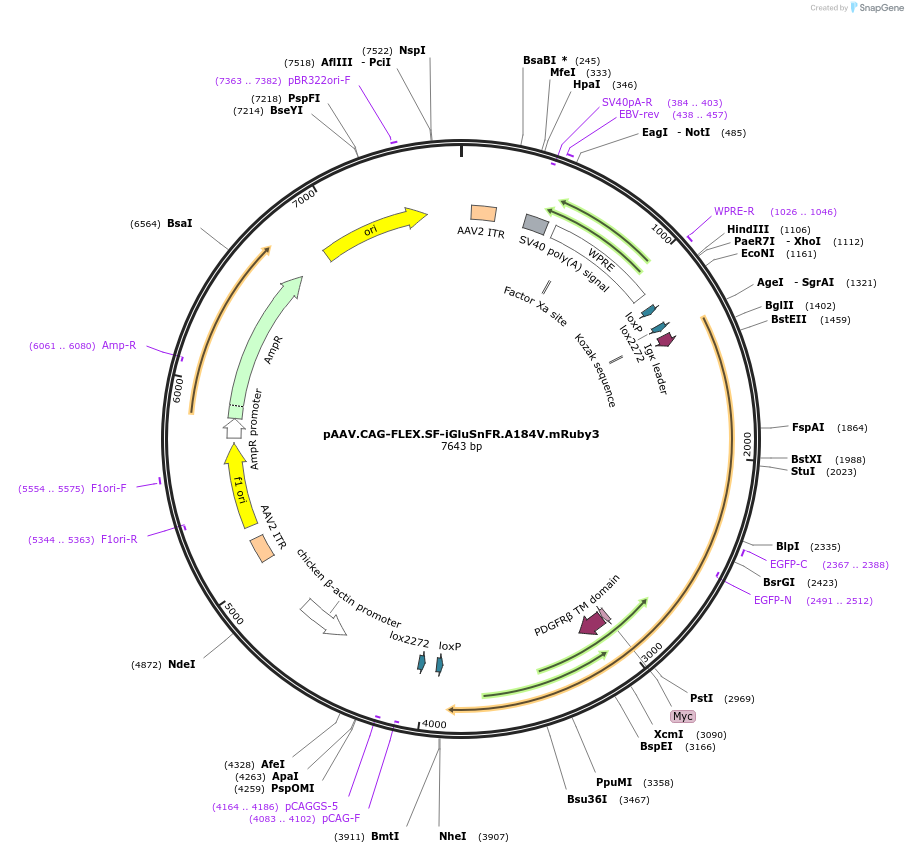

pAAV.CAG-FLEX.SF-iGluSnFR.A184V.mRuby3
(Plasmid #106205)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 106205 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pAAV.CAG-FLEX
  • Backbone size w/o insert (bp) 5087
  • Vector type
    AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    SF-iGluSnFR.A184V
  • Species
    Synthetic
  • Insert Size (bp)
    2556
  • Mutation
    GltI: A184V + mRuby3 fusion
  • Promoter CAG

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site unknown (unknown if destroyed)
  • 3′ cloning site unknown (unknown if destroyed)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

** A newer version of this sensor is available. Please see iGluSnFR3 plasmids at https://www.addgene.org/browse/article/28220233/ **

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV.CAG-FLEX.SF-iGluSnFR.A184V.mRuby3 was a gift from Loren Looger (Addgene plasmid # 106205 ; http://n2t.net/addgene:106205 ; RRID:Addgene_106205)

  • For your References section:

    Stability, affinity, and chromatic variants of the glutamate sensor iGluSnFR. Marvin JS, Scholl B, Wilson DE, Podgorski K, Kazemipour A, Muller JA, Schoch S, Quiroz FJU, Rebola N, Bao H, Little JP, Tkachuk AN, Cai E, Hantman AW, Wang SS, DePiero VJ, Borghuis BG, Chapman ER, Dietrich D, DiGregorio DA, Fitzpatrick D, Looger LL. Nat Methods. 2018 Nov;15(11):936-939. doi: 10.1038/s41592-018-0171-3. Epub 2018 Oct 30. 10.1038/s41592-018-0171-3 PubMed 30377363
