pKK-TEV-ProteinA
(Plasmid
#105788)
-
Purpose(Empty Backbone) Expression of your protein of interest in fusion with two IgG binding domains of Staphylococcus aureus protein A at the C-terminus (cleavable by TEV) (PMID: 3507693, 10504710). Protein purification.
-
Depositing Lab
-

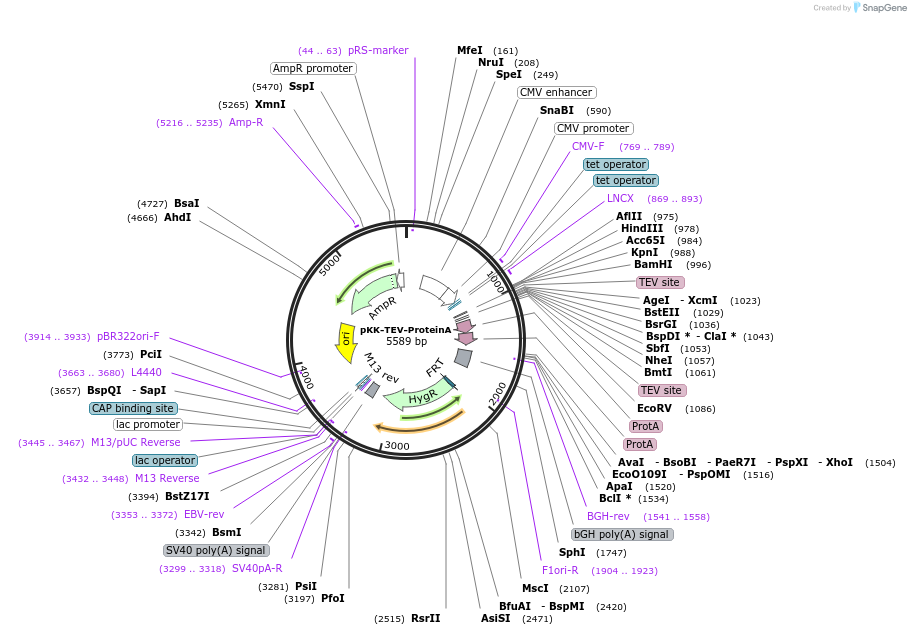

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 105788 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepcDNA5/FRT/TO
-
Backbone manufacturerInvitrogen
-
Vector typeMammalian Expression ; Flp-In competent
-
Selectable markersHygromycin
-
Tag
/ Fusion Protein
- TEV-ProteinA (C terminal on backbone)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNone
-
Tag
/ Fusion Protein
- TEV-ProteinA (C terminal on backbone)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
This vector is a member of the pKK vector family. Its cloning site was optimized for the SLIC approach, however, a traditional restriction and ligation based approach is also possible (see Szczesny RJ et al. for detailed protocols; bioRxiv, doi: https://doi.org/10.1101/160101) This vector is a derivate of the pcDNA5/FRT/TO plasmid (Invitrogen) and is suitable for stable cell line generation using the Flp-In system. Transcription of the gene of interest is driven by a tetracycline responsive CMV promoter. A given coding sequence can be cloned into all pKK vectors using just three universal PCR primers and a ligation-independent DNA cloning method. Protein A of Staphylococcus aureus binds to IgG of different origin which can be used for affinity purification or antibody-based detection. Protein A (i.e. two IgG-binding domains of protein A) is often used for tandem affinity purification, in which a protein of interest is expressed in fusion with two different tags (for example Protein A-calmodulin binding peptide) (PMID: 3507693, 10504710). In this vector only Protein A is encoded.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pKK-TEV-ProteinA was a gift from Andrzej Dziembowski (Addgene plasmid # 105788 ; http://n2t.net/addgene:105788 ; RRID:Addgene_105788) -
For your References section:
Versatile approach for functional analysis of human proteins and efficient stable cell line generation using FLP-mediated recombination system. Szczesny RJ, Kowalska K, Klosowska-Kosicka K, Chlebowski A, Owczarek EP, Warkocki Z, Kulinski TM, Adamska D, Affek K, Jedroszkowiak A, Kotrys AV, Tomecki R, Krawczyk PS, Borowski LS, Dziembowski A. PLoS One. 2018 Mar 28;13(3):e0194887. doi: 10.1371/journal.pone.0194887. eCollection 2018. 10.1371/journal.pone.0194887 PubMed 29590189
