pKK-mCherry-TEV
(Plasmid
#105779)
-
Purpose(Empty Backbone) Expression of your protein of interest in fusion with red fluorescent protein at the N-terminus (cleavable by TEV), (PMID: 15558047). mCherry descends from the first truly monomeric red FP mRFP1.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 105779 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepcDNA5/FRT/TO
-
Backbone manufacturerInvitrogen
-
Vector typeMammalian Expression ; Flp-In competent
-
Selectable markersHygromycin
-
Tag
/ Fusion Protein
- mCherry-TEV (N terminal on backbone)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNone
-
Tag
/ Fusion Protein
- mCherry-TEV (N terminal on backbone)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments

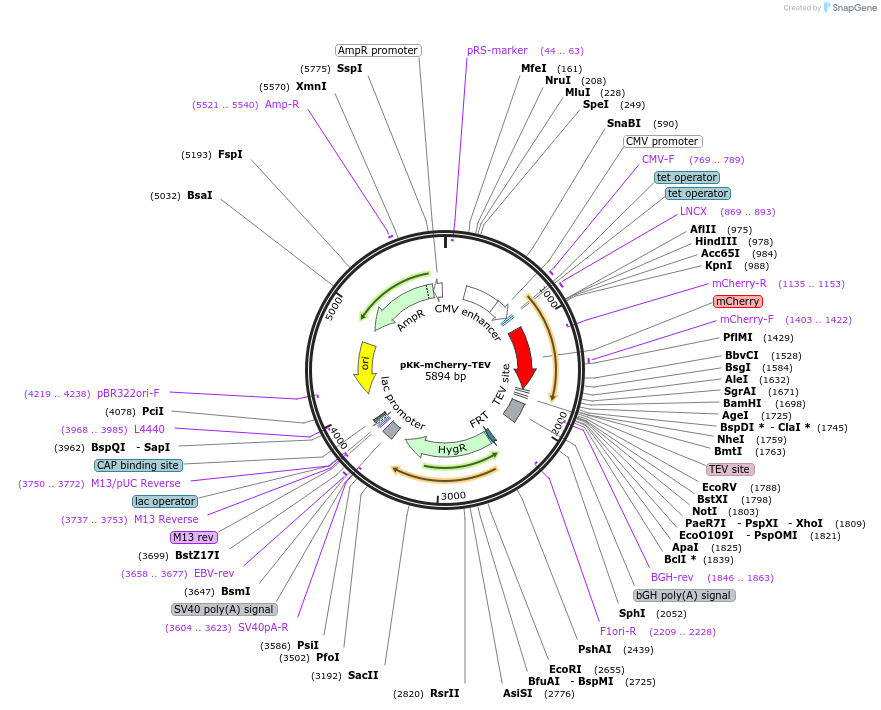

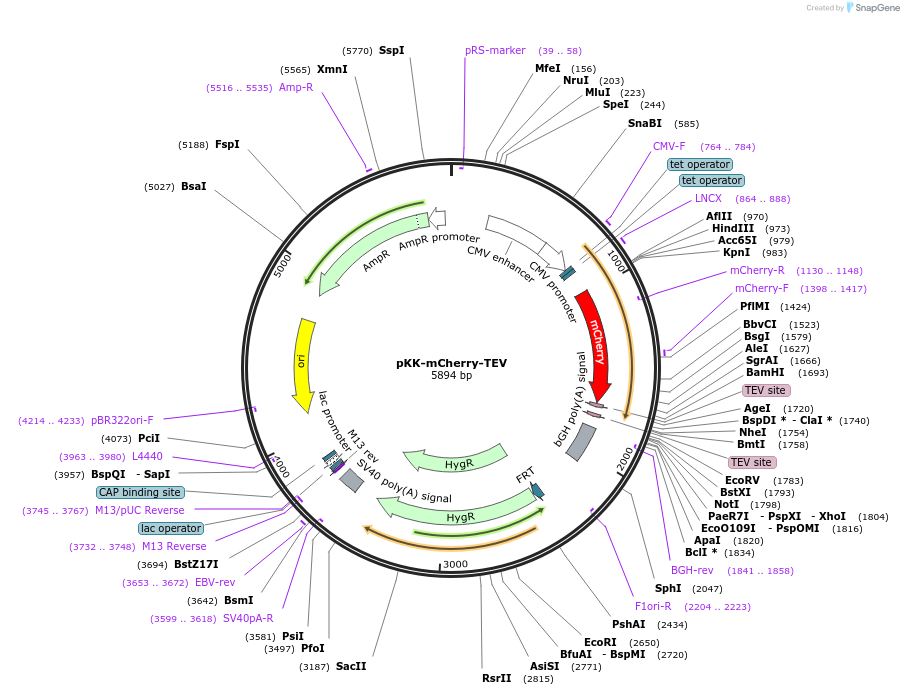

This vector is a member of the pKK vector family. Its cloning site was optimized for the SLIC approach, however, a traditional restriction and ligation based approach is also possible (see Szczesny RJ et al. for detailed protocols; bioRxiv, doi: https://doi.org/10.1101/160101) This vector is a derivate of the pcDNA5/FRT/TO plasmid (Invitrogen) and is suitable for stable cell line generation using the Flp-In system. Transcription of the gene of interest is driven by a tetracycline responsive CMV promoter. A given coding sequence can be cloned into all pKK vectors using just three universal PCR primers and a ligation-independent DNA cloning method. mCherry descends from the first truly monomeric red fluorescent protein mRFP1, which was obtained by mutating DsRed form Discosoma sp. Note that EGFP and mCherry come from different organisms and their sequences differ greatly. However, GFP-type termini were introduced into mCherry to increase tolerance of N- and C-terminal fusions in mammalian cells (PMID: 15558047). Thus, terminal sequences of EGFP and mCherry are the same.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pKK-mCherry-TEV was a gift from Andrzej Dziembowski (Addgene plasmid # 105779 ; http://n2t.net/addgene:105779 ; RRID:Addgene_105779) -
For your References section:
Versatile approach for functional analysis of human proteins and efficient stable cell line generation using FLP-mediated recombination system. Szczesny RJ, Kowalska K, Klosowska-Kosicka K, Chlebowski A, Owczarek EP, Warkocki Z, Kulinski TM, Adamska D, Affek K, Jedroszkowiak A, Kotrys AV, Tomecki R, Krawczyk PS, Borowski LS, Dziembowski A. PLoS One. 2018 Mar 28;13(3):e0194887. doi: 10.1371/journal.pone.0194887. eCollection 2018. 10.1371/journal.pone.0194887 PubMed 29590189
