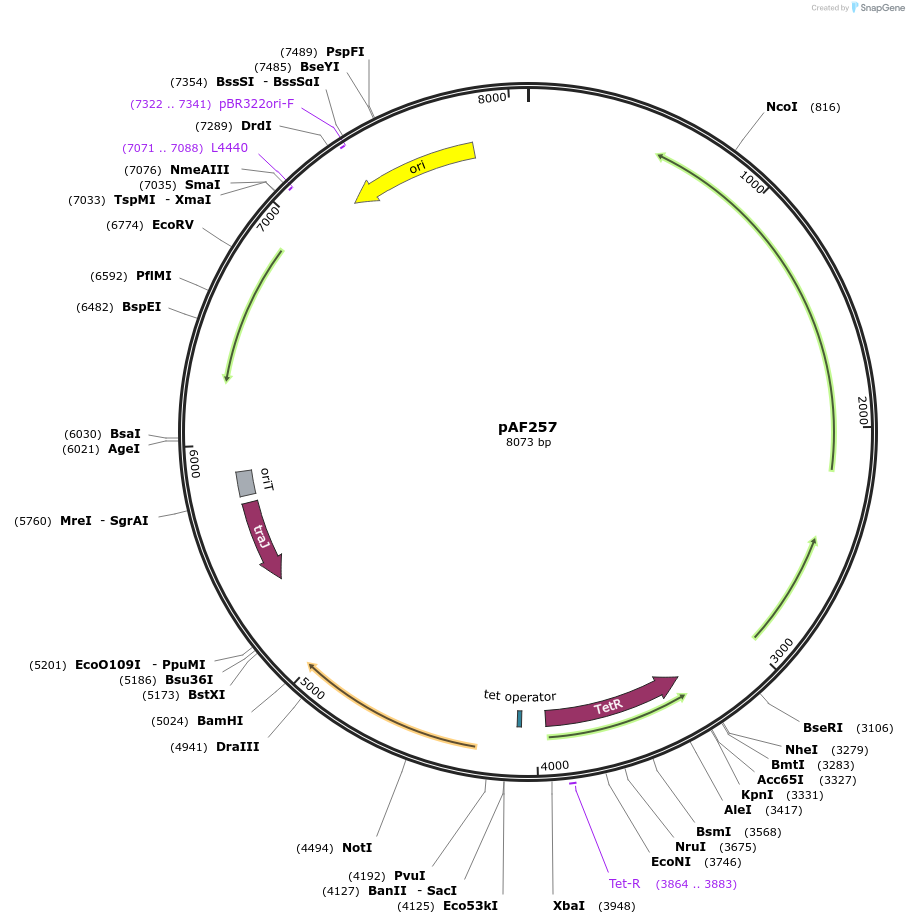

pAF257
(Plasmid #105497)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 105497 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pRPF185
  • Backbone manufacturer
    R.P. Fagan, University of Sheffield
  • Total vector size (bp) 8073
  • Vector type
    ATc-dependent expression in C. difficile

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    SmBiT/HupA-LgBiT
  • Species
    C. difficile / synthetic
  • Insert Size (bp)
    897
  • Promoter Ptet

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SacI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer CTGGACTTCATGAAAAACTAAAAAAAATATTG
  • 3′ sequencing primer CACCGACGAGCAAGGCAAGACCG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://www.biorxiv.org/content/early/2018/09/27/426809 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAF257 was a gift from Wiep Klaas Smits (Addgene plasmid # 105497 ; http://n2t.net/addgene:105497 ; RRID:Addgene_105497)
  • For your References section:

    The Bacterial Chromatin Protein HupA Can Remodel DNA and Associates with the Nucleoid in Clostridium difficile. Oliveira Paiva AM, Friggen AH, Qin L, Douwes R, Dame RT, Smits WK. J Mol Biol. 2019 Jan 8. pii: S0022-2836(18)31160-4. doi: 10.1016/j.jmb.2019.01.001. 10.1016/j.jmb.2019.01.001 PubMed 30633871
