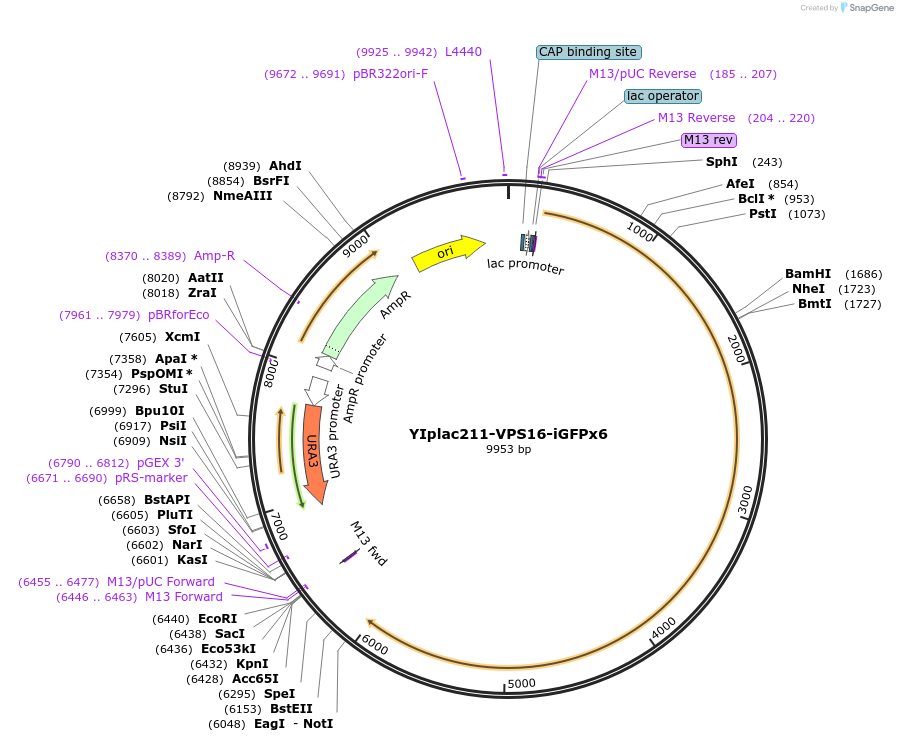

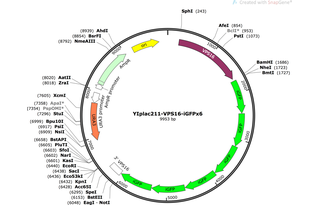

YIplac211-VPS16-iGFPx6
(Plasmid #105275)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 105275 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    YIplac211
  • Backbone size w/o insert (bp) 3797
  • Total vector size (bp) 9953
  • Vector type
    Yeast Expression
  • Selectable markers
    URA3

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Vps16 portion
  • Species
    S. cerevisiae (budding yeast)
  • Entrez Gene
    VPS16 (a.k.a. YPL045W, CVT15, SVL6, VAM9, VPT16)
  • Tag / Fusion Protein
    • iGFPx6 (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SphI (not destroyed)
  • 3′ cloning site KpnI (not destroyed)
  • 5′ sequencing primer M13 REVERSE
  • 3′ sequencing primer M13 FORWARD
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    YIplac211-VPS16-iGFPx6 was a gift from Benjamin Glick (Addgene plasmid # 105275 ; http://n2t.net/addgene:105275 ; RRID:Addgene_105275)

  • For your References section:

    Budding Yeast Has a Minimal Endomembrane System. Day KJ, Casler JC, Glick BS. Dev Cell. 2018 Jan 8;44(1):56-72.e4. doi: 10.1016/j.devcel.2017.12.014. Epub 2018 Jan 8. 10.1016/j.devcel.2017.12.014 PubMed 29316441
