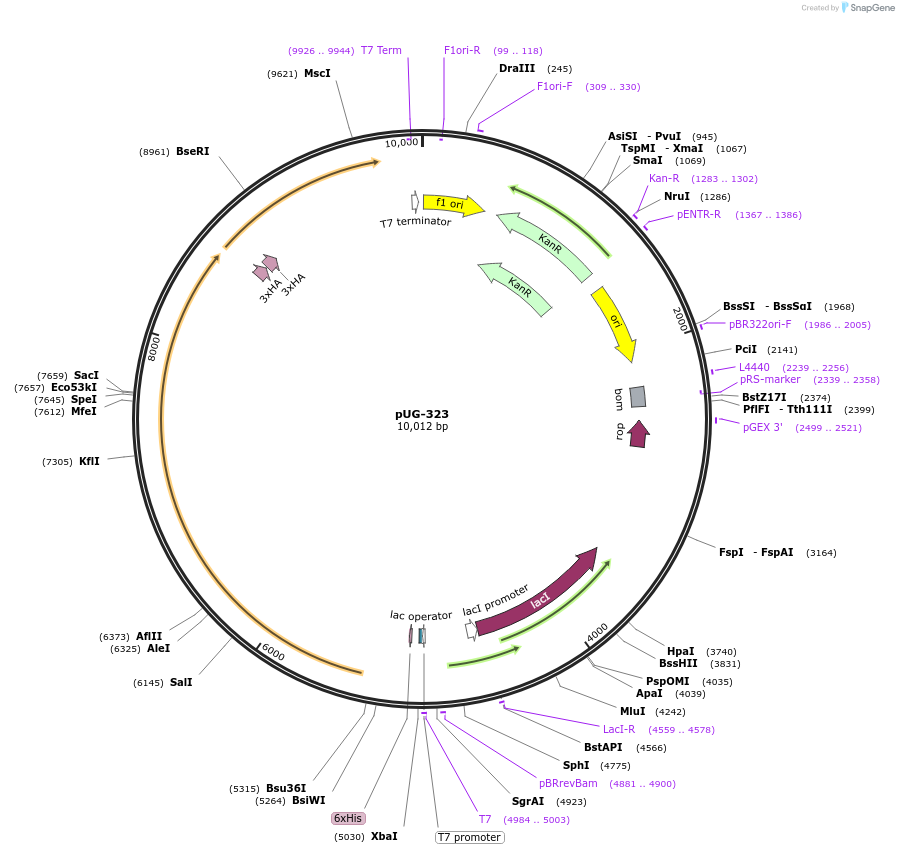

pUG-323
(Plasmid #104752)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 104752 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pET-28GG
  • Backbone size w/o insert (bp) 5190
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    HIS-Ubq_UBA1_HA-UBC32_EL3
  • Alt name
    AT4G05320,AT2G30110,AT3G17000
  • Species
    A. thaliana (mustard weed)
  • Insert Size (bp)
    4822
  • Promoter T7
  • Tag / Fusion Protein
    • HIS-Ubq, HA-E2 (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BpiI (destroyed during cloning)
  • 3′ cloning site BpiI (destroyed during cloning)
  • 5′ sequencing primer T7
  • 3′ sequencing primer T7 Terminal
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pUG-323 was a gift from Marco Trujillo (Addgene plasmid # 104752 ; http://n2t.net/addgene:104752 ; RRID:Addgene_104752)

  • For your References section:

    UbiGate: a synthetic biology toolbox to analyse ubiquitination. Kowarschik K, Hoehenwarter W, Marillonnet S, Trujillo M. New Phytol. 2018 Mar;217(4):1749-1763. doi: 10.1111/nph.14900. Epub 2017 Nov 30. 10.1111/nph.14900 PubMed 29194629
