pUG-489
(Plasmid
#104715)
-
PurposeCloning Module
-
Depositing Lab
-

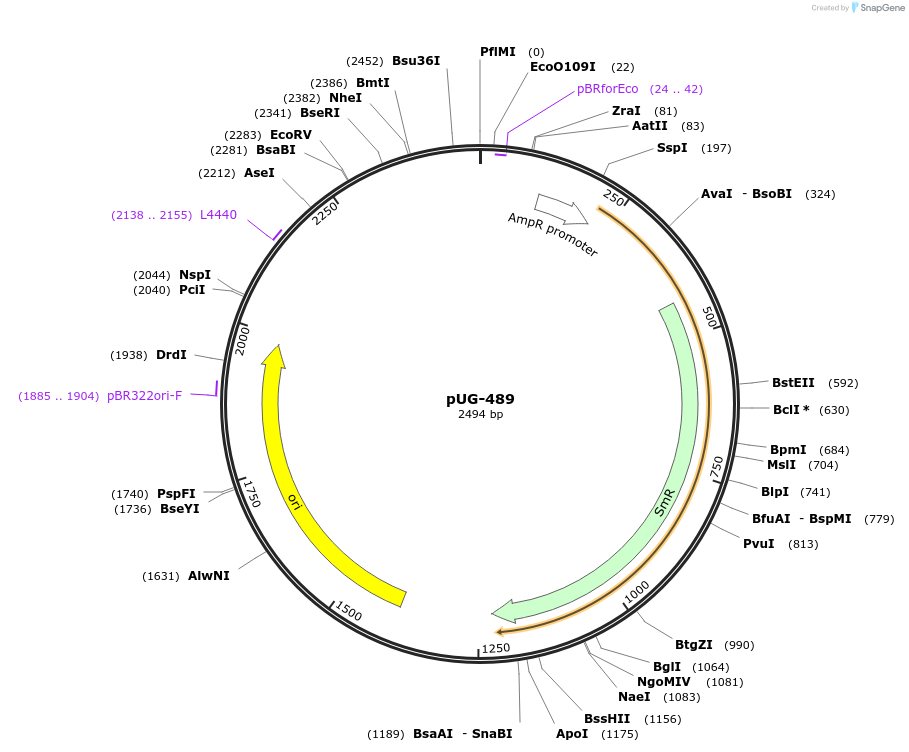

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 104715 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepICH41308
-
Backbone manufacturerself-made
- Backbone size w/o insert (bp) 2251
-
Vector typeSynthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Spectinomycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNEDD8
-
Alt nameAT1G31340
-
Alt nameRUB1
-
SpeciesA. thaliana (mustard weed)
-
Insert Size (bp)251
-
Entrez GeneRUB1 (a.k.a. ARABIDOPSIS THALIANA RELATED TO UBIQUITIN 1, ATRUB1, NEDD8, RELATED TO UBIQUITIN 1, RUB1, T19E23.13, T19E23_13)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BpiI (destroyed during cloning)
- 3′ cloning site BpiI (destroyed during cloning)
- 5′ sequencing primer moclof, agcgaggaagcggaagagcg
- 3′ sequencing primer moclor, gccacctgacgtctaagaaacc (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
release insert with BsaI and clone to Level 1 cloning vector
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pUG-489 was a gift from Marco Trujillo (Addgene plasmid # 104715 ; http://n2t.net/addgene:104715 ; RRID:Addgene_104715) -
For your References section:
UbiGate: a synthetic biology toolbox to analyse ubiquitination. Kowarschik K, Hoehenwarter W, Marillonnet S, Trujillo M. New Phytol. 2018 Mar;217(4):1749-1763. doi: 10.1111/nph.14900. Epub 2017 Nov 30. 10.1111/nph.14900 PubMed 29194629
