pUG-TP3
(Plasmid
#104651)
-
Purpose(Empty Backbone) Level 1 cloning vector
-
Depositing Lab
-

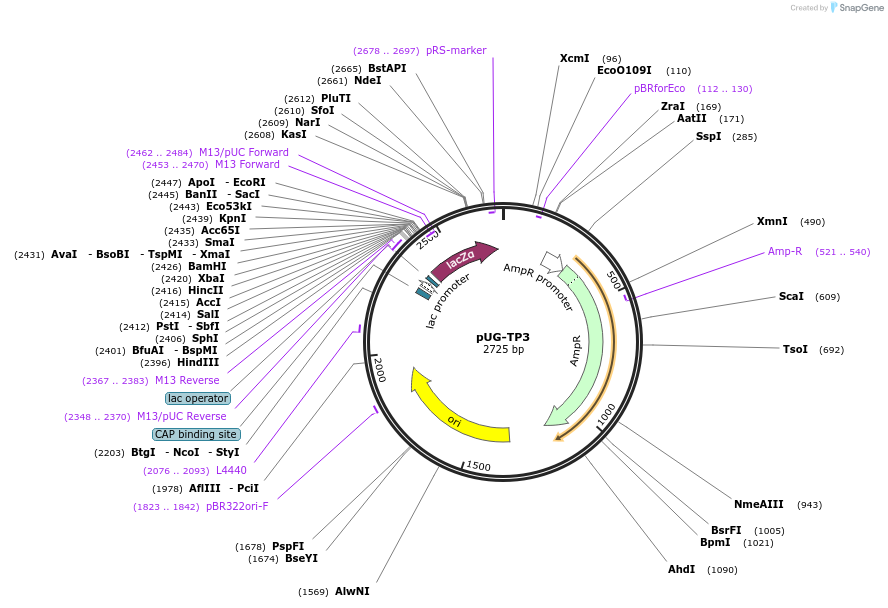

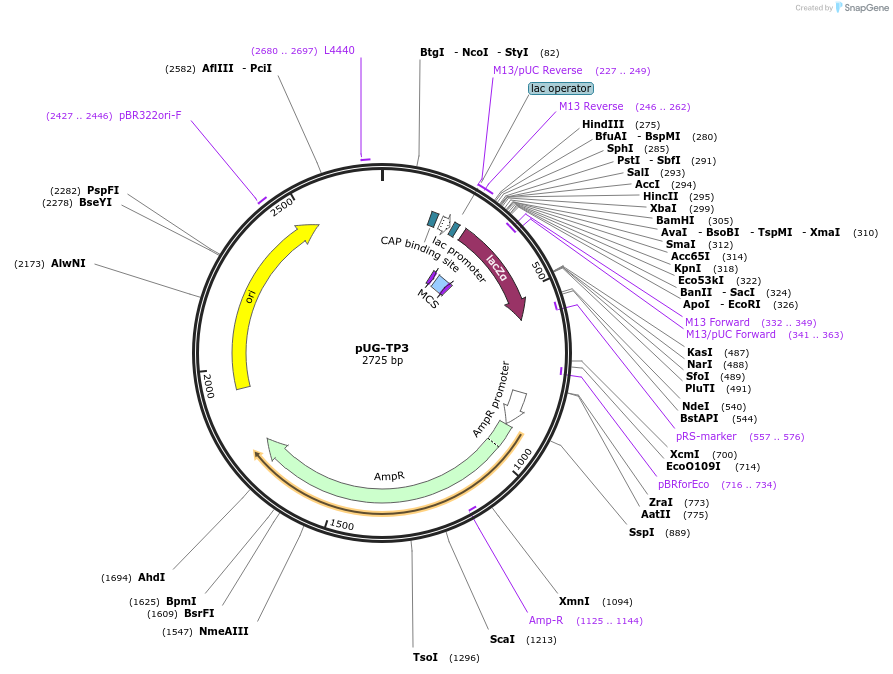

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 104651 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepICH66323
-
Backbone manufacturerself-made
- Backbone size (bp) 2222
-
Vector typeSynthetic Biology
-
Selectable markersLacZ alpha
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNone
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Level 1 cloning vector for insertion of an N-terminal tag, defining position no.3 for cloning with BsaI
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pUG-TP3 was a gift from Marco Trujillo (Addgene plasmid # 104651 ; http://n2t.net/addgene:104651 ; RRID:Addgene_104651) -
For your References section:
UbiGate: a synthetic biology toolbox to analyse ubiquitination. Kowarschik K, Hoehenwarter W, Marillonnet S, Trujillo M. New Phytol. 2018 Mar;217(4):1749-1763. doi: 10.1111/nph.14900. Epub 2017 Nov 30. 10.1111/nph.14900 PubMed 29194629
