pJC-20xUAS-TALE3-VP64-P10
(Plasmid #104607)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 104607 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

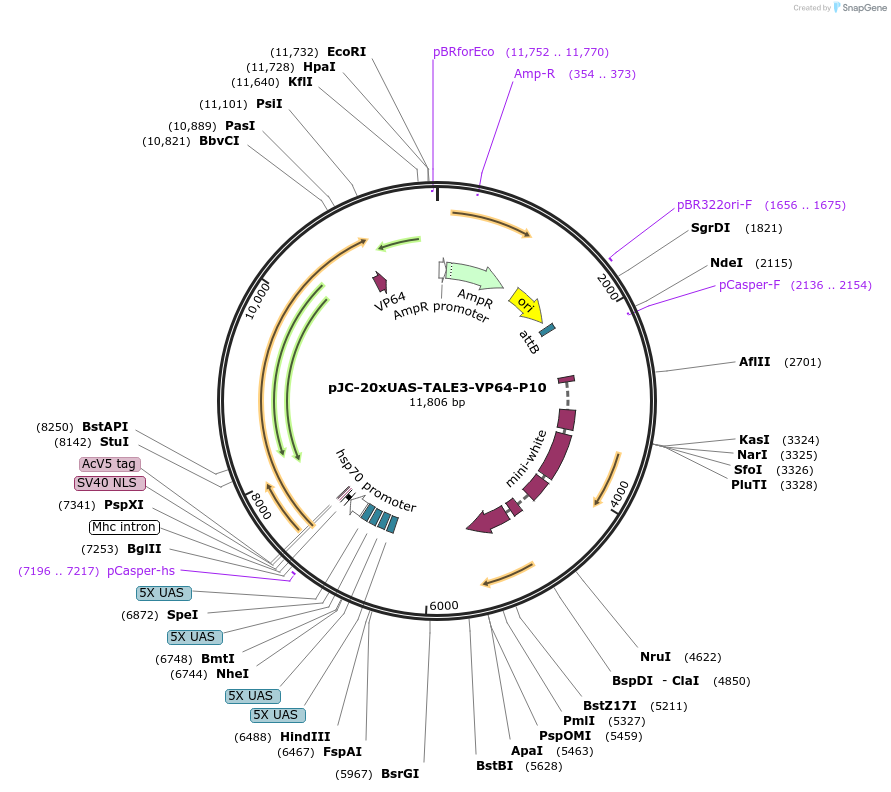

Backbone

  • Vector backbone
    pJC-TALE-VP64 (Plasmid #46147)
  • Backbone manufacturer
    David L. Stern
  • Backbone size w/o insert (bp) 9851
  • Total vector size (bp) 11806
  • Modifications to backbone
    Golden Gate assembled TALE3-array inserted between TAL-N' and TAL-C'
  • Vector type
    Insect Expression, TALEN

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    TALE3
  • Species
    Synthetic
  • Insert Size (bp)
    1955
  • Promoter hsp70

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BsmBI (destroyed during cloning)
  • 3′ cloning site BsmBI (destroyed during cloning)
  • 5′ sequencing primer AGCAGCAAGAGAAGATCAAACC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJC-20xUAS-TALE3-VP64-P10 was a gift from Tudor Fulga (Addgene plasmid # 104607 ; http://n2t.net/addgene:104607 ; RRID:Addgene_104607)

  • For your References section:

    A multiplexable TALE-based binary expression system for in vivo cellular interaction studies. Toegel M, Azzam G, Lee EY, Knapp DJHF, Tan Y, Fa M, Fulga TA. Nat Commun. 2017 Nov 21;8(1):1663. doi: 10.1038/s41467-017-01592-3. 10.1038/s41467-017-01592-3 PubMed 29162808
