Purpose(Empty Backbone) A piggybac vector with puromycin resistance and a U6 promoter that allows cloning of guide RNAs
-
Depositing Lab
-

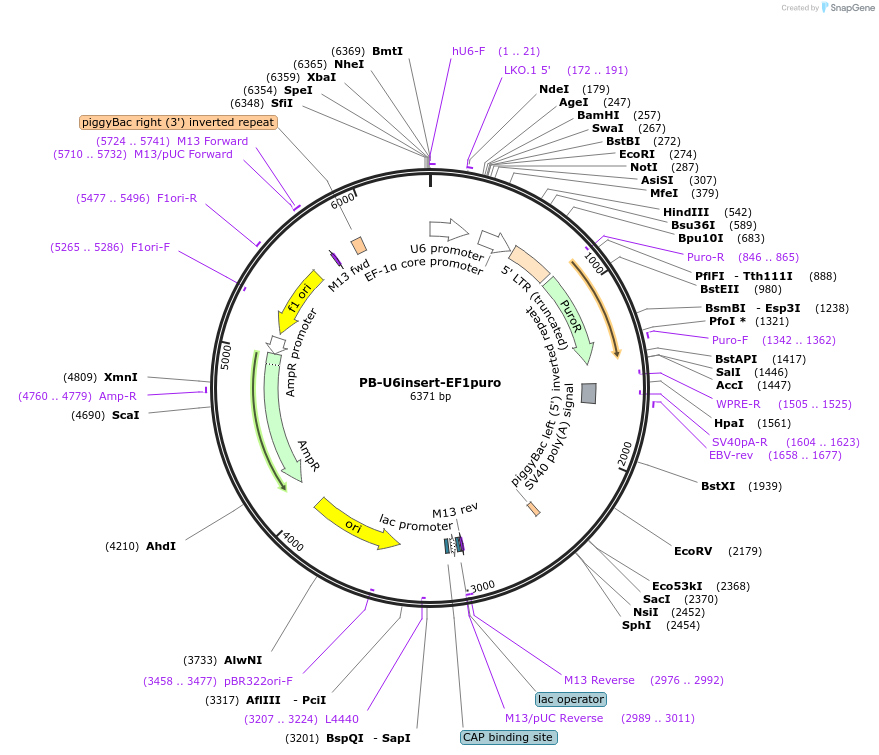

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 104537 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonePB
-
Backbone manufacturerSystems Biosciences
- Backbone size (bp) 6300
-
Vector typeMammalian Expression, Mouse Targeting, CRISPR, Synthetic Biology ; Piggybac transposon
- Promoter U6
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)NEB Stable
-
Copy numberUnknown
Cloning Information
- Cloning method Restriction Enzyme
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
PB-U6insert-EF1puro was a gift from George Church (Addgene plasmid # 104537 ; http://n2t.net/addgene:104537 ; RRID:Addgene_104537) -
For your References section:
Developmental barcoding of whole mouse via homing CRISPR. Kalhor R, Kalhor K, Mejia L, Leeper K, Graveline A, Mali P, Church GM. Science. 2018 Aug 9. pii: science.aat9804. doi: 10.1126/science.aat9804. 10.1126/science.aat9804 PubMed 30093604
