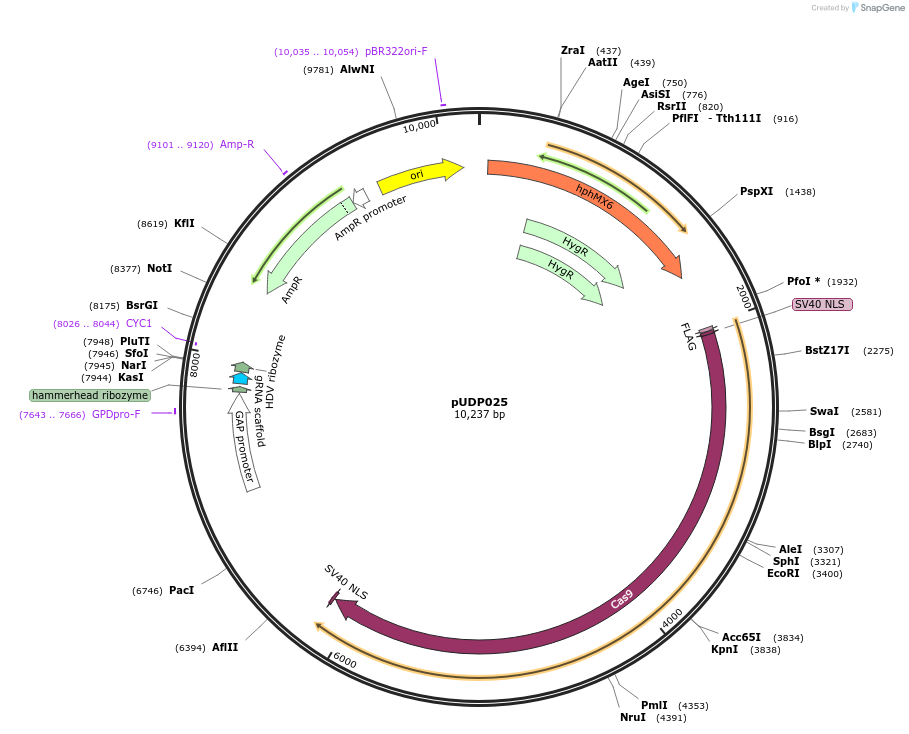

pUDP025
(Plasmid #103874)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 103874 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pUDP002
  • Backbone manufacturer
    Juergens H et al. Genome editing in Kluyveromyces and Ogataea yeasts using a broad-host-range Cas9/gRNA expression plasmid
  • Backbone size w/o insert (bp) 10046
  • Total vector size (bp) 10237
  • Vector type
    Yeast Expression, CRISPR
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    HH-gRNA-HDV targetting ADE2 in Kluyveromyces lactis
  • gRNA/shRNA sequence
    CAAATTGAAACTGATGAGTCCGTGAGGACGAAACGAGTAAGCTCGTCTTTCAATACCTCA AGTGCTTGTTTTAGAGCTAGAAATAGCAAGTTAAAATAAGGCTAGTCCGTTATCAACTTG AAAAAGTGGCACCGAGTCGGTGCTTTTGGCCGGCATGGTCCCAGCCTCCTCGCTGGCGCC GGCTGGGCAACATGCTTCGGCATGGCGAATGGGAC
  • Species
    Kluyveromyces lactis
  • GenBank ID
    XM_454067
  • Promoter ScTDH3

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BsaI (destroyed during cloning)
  • 3′ cloning site BsaI (destroyed during cloning)
  • 5′ sequencing primer ACATCGTAGGTGTCTGGGTGAAC
  • 3′ sequencing primer CTTTTCGGTTAGAGCGGATGTGG
    • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    A patent describing the use of the panARSOPT sequence used in pUDP series is pending (Pan-yeast autonomously replicating sequence WO2014131056 A1). The legal status of Cas9 application is not yet sorted out The Spcas9D147Y P411T gene presents on pUDP025 is derived from pCT (Plasmid #60620) obtained from Addgene under Material Transfer Agreement Instructions (Order 211742- our reference TNW15.216)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pUDP025 was a gift from Jean-Marc Daran (Addgene plasmid # 103874 ; http://n2t.net/addgene:103874 ; RRID:Addgene_103874)

  • For your References section:

    Genome editing in Kluyveromyces and Ogataea yeasts using a broad-host-range Cas9/gRNA co-expression plasmid. Juergens H, Varela JA, Gorter de Vries AR, Perli T, Gast VJM, Gyurchev NY, Rajkumar AS, Mans R, Pronk JT, Morrissey JP, Daran JG. FEMS Yeast Res. 2018 May 1;18(3). pii: 4847887. doi: 10.1093/femsyr/foy012. 10.1093/femsyr/foy012 PubMed 29438517
