Addgene

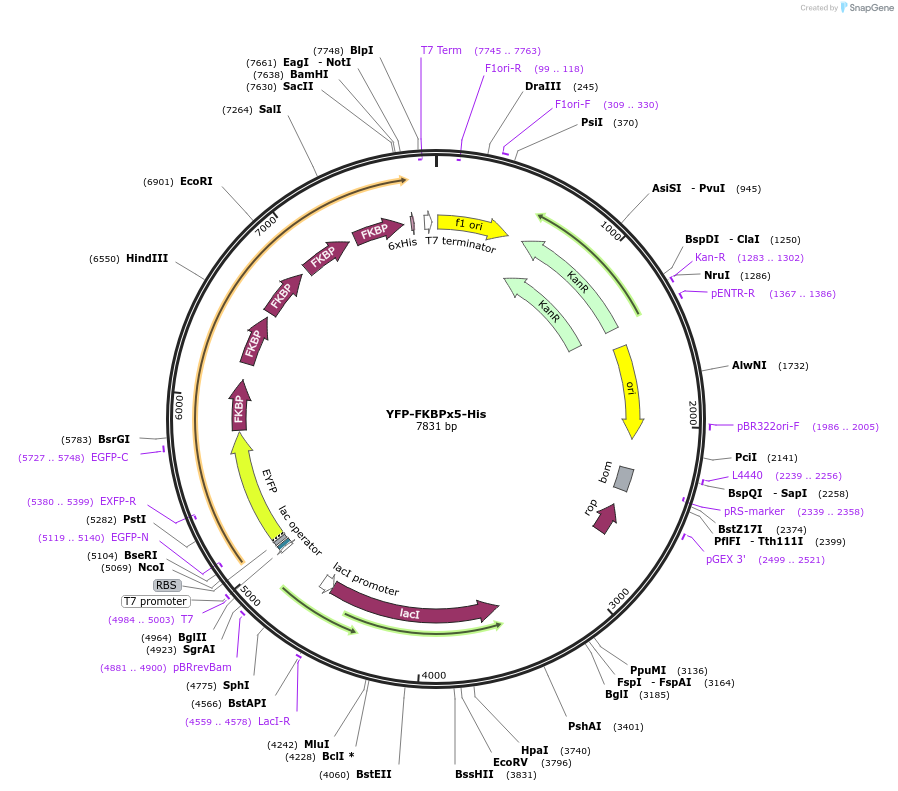

YFP-FKBPx5-His
(Plasmid #103785)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 103785 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pET28a
  • Backbone manufacturer
    Novagen
  • Backbone size w/o insert (bp) 5369
  • Total vector size (bp) 7831
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    YFP-FKBPx5-His
  • Species
    Synthetic
  • Promoter T7
  • Tag / Fusion Protein
    • EYFP, His-tag

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site PstI (not destroyed)
  • 3′ cloning site EcoRi (not destroyed)
  • 5′ sequencing primer TAATACGACTCACTATAGGG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    YFP-FKBPx5-His was a gift from Takanari Inoue (Addgene plasmid # 103785 ; http://n2t.net/addgene:103785 ; RRID:Addgene_103785)

  • For your References section:

    Intracellular production of hydrogels and synthetic RNA granules by multivalent molecular interactions. Nakamura H, Lee AA, Afshar AS, Watanabe S, Rho E, Razavi S, Suarez A, Lin YC, Tanigawa M, Huang B, DeRose R, Bobb D, Hong W, Gabelli SB, Goutsias J, Inoue T. Nat Mater. 2017 Nov 6. pii: nmat5006. doi: 10.1038/nmat5006. 10.1038/nmat5006 PubMed 29115293
