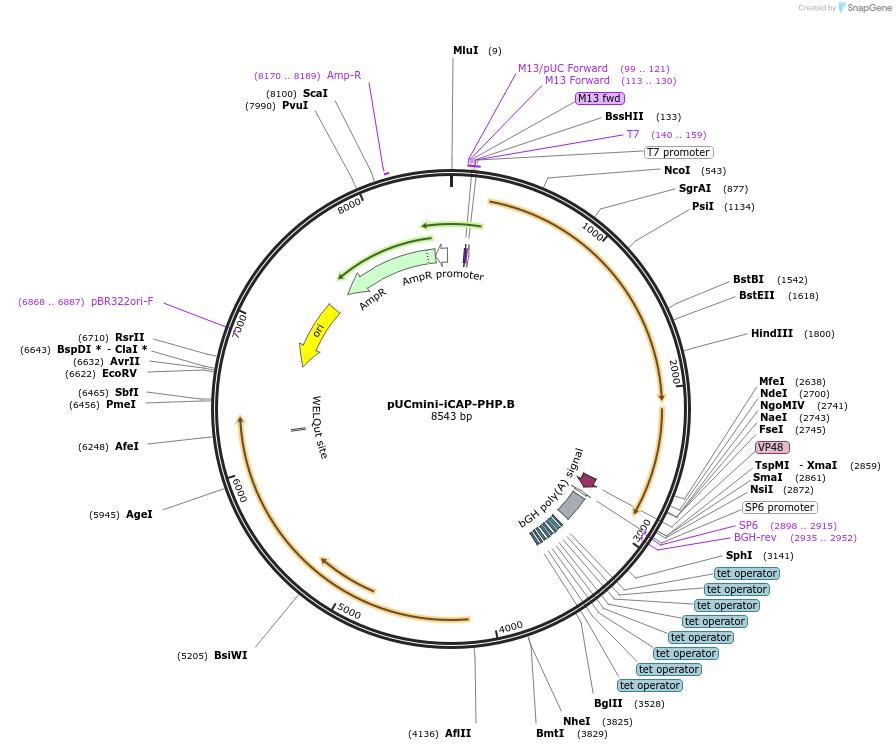

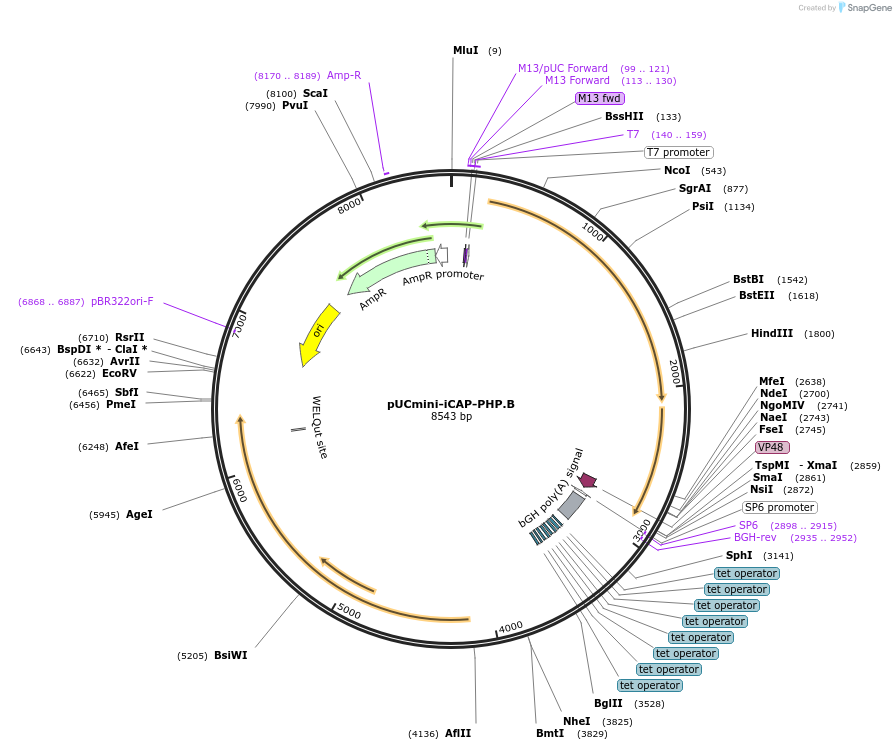

pUCmini-iCAP-PHP.B
(Plasmid #103002)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 103002 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pUC57-mini
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Synthetic construct isolate AAV-PHP.B VP1 gene
  • Alt name
    AAV-PHP.B Cap
  • Species
    Synthetic
  • Promoter p41

Cloning Information

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please note that this is a non-standard rep-cap construct. It uses a tTA-TRE amplification loop to increase Capsid expression and AAV production. We find that this system increases AAV titers 1.5-5 fold (Ben Deverman, Bryan Simpson and Paul Patterson, unpublished data). This is a tet-off system, so no dox or tet is needed to turn it on. It can be used like any other rep-cap plasmid. *This system should only present a problem if the rAAV genome to be packaged has a tet responsive element that directs expression of a protein that affected the health of the production cells. The introduction of an XbaI restriction site for ease of cloning introduces a K449R mutation, which does not have an overt effect on vector production or transduction.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pUCmini-iCAP-PHP.B was a gift from Viviana Gradinaru (Addgene plasmid # 103002 ; http://n2t.net/addgene:103002 ; RRID:Addgene_103002)
  • For your References section:

    Cre-dependent selection yields AAV variants for widespread gene transfer to the adult brain. Deverman BE, Pravdo PL, Simpson BP, Kumar SR, Chan KY, Banerjee A, Wu WL, Yang B, Huber N, Pasca SP, Gradinaru V. Nat Biotechnol. 2016 Feb;34(2):204-9. doi: 10.1038/nbt.3440. Epub 2016 Feb 1. 10.1038/nbt.3440 PubMed 26829320
